Key Features
-
Dual-Lens Pan & Tilt Design: Two lenses in a single housing — one ultra-wide lens (top) and one long-range / close-up lens (bottom) — each capable of rotation to reduce blind spots.
-
4MP Resolution (2K⁺ Video): High-definition video from each lens ensures crisp details, whether capturing wide areas or zoomed-in shots.
-
Smart Detection & Auto-Tracking: Co-detection between both lenses for smarter human & vehicle shape detection. When the wide lens spots motion, the close-up lens can follow.
-
Night Vision with Multiple Modes: Full-color night vision up to 40 meters when both lenses align; infrared and smart mode options to suit different environments.
-
Active Defense: Built-in siren and strobe light act as deterrents. Customizable voice alerts also available.
-
Patrol & Preset Modes: Pre-set patrol paths, preset locations; bottom lens rotates up to 324° pan and 90° tilt; top lens wide angle covers large area.
-
Weatherproof & Durable: IP65 rating, built to perform in rain or snow; designed for both outdoor & indoor use.
-
Two-Way Talk & Voice Assistant Support: Communicate through the camera via your phone. Works with Amazon Alexa & Google Assistant.
Specifications
| Specification | Detail |
|---|---|
| Model | CS-H90-R100-8H44WKFL |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Top Lens | 2.8 mm, F1.6; diagonal ~110°, horizontal ~96°, vertical ~54° |
| Bottom Lens | 6 mm, F1.6; diagonal ~60°, horizontal ~52°, vertical ~28° |
| Pan / Tilt Angles | Top lens: pan ≈ 220°, tilt ~10° (manual adjust) Bottom lens: pan 324°, tilt 90° |
| Night Vision Range | Up to 40 m (when lenses aligned), ~30 m in certain configurations; IR & color modes |
| Video Compression | H.265 / H.264 |
| Storage Options | microSD up to 512 GB + EZVIZ CloudPlay |
| Network / Connectivity | WiFi 2.4 GHz; RJ-45 10/100 Mbps Ethernet port |
| Power / Consumption | Max ~18 W |
| Operating Conditions | -30°C to 50°C; up to 95% humidity |

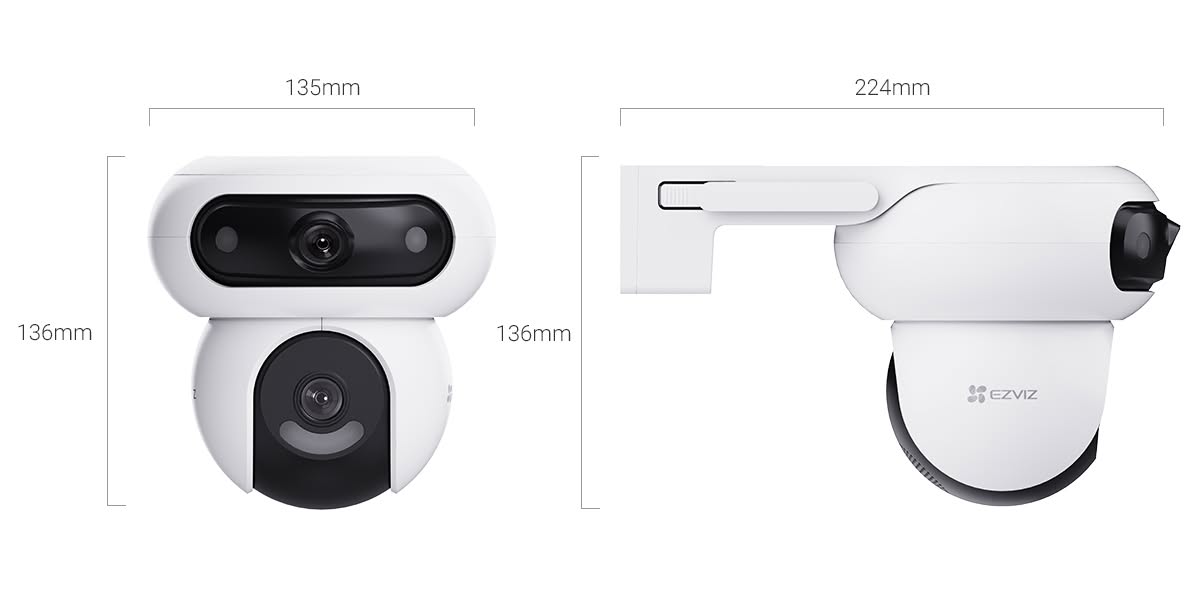

| Dimensions / Weight | Approx. 224 × 135 × 136 mm; ~723 g |
