Sherlotronics Fixed Panic Panel


Sherlotronics Fixed Panic Panel
  • Fixed Panic Panel: FPP
  • 1 Button Pennant Remote (sold separately)


  • Office panic
  • Shop panic
  • Home panic
  • Factory panic
  • Guard house panic

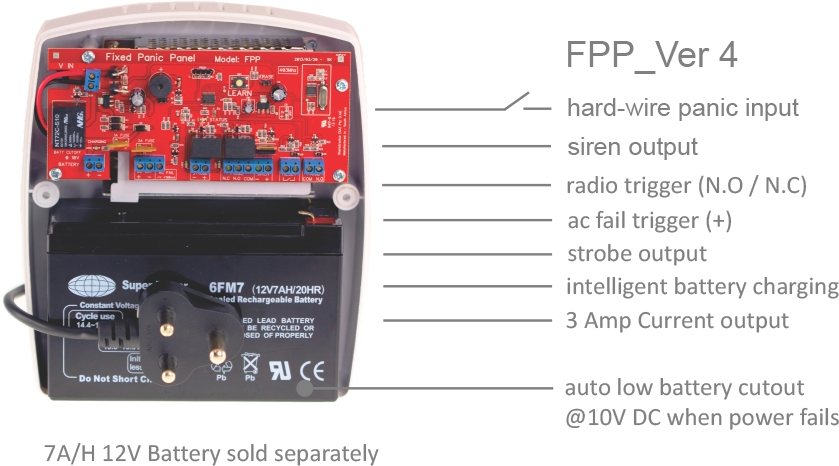

Designed to be wired to a static hardwired panic button as well as work with Remote panic buttons. When a Panic is activated the unit will trigger the 3 Minute siren output as well as the Radio output & a Latching Strobe output. All activations can be reset via either the Remote control or the Hardwired Panic button. Our Low battery cut-out @ 10V DC will safeguard the battery from deep discharge.


  • Microprocessor Controlled charging output.
  • Low battery switch off at 10V DC.
  • Buzzer tones on battery low and AC Fail.
  • Resettable Fuse protection on output.
  • Fuse protection on AC input.
  • ABS Plastic enclosure.


  • EN 55022:2010; EN 55024:2010
  • EN 6100-3-2:2006+A1:2009 + A2:2009
  • EN 6100-3-3:2008; IEC 60950-1:2005 + A1:2009
  • ICASA – TA-2017/2237


  • Input Voltage Range: 110V ~ 230V AC 50Hz
  • Output Voltage: 13V ~ 14.4V Adjustable
  • Max Current output: 3.2A DC @ 14V
  • Relay contact rating: 10A
  • AC Fail output rating: 140mA Positive switching
  • Operating temp: -3°C to 60°C
  • Dimensions (lxbxh): 200 x 180 x 87mm
  • Gross Weight: 0.895Kg
  • Sherlotronics Warranty: 12 Months
