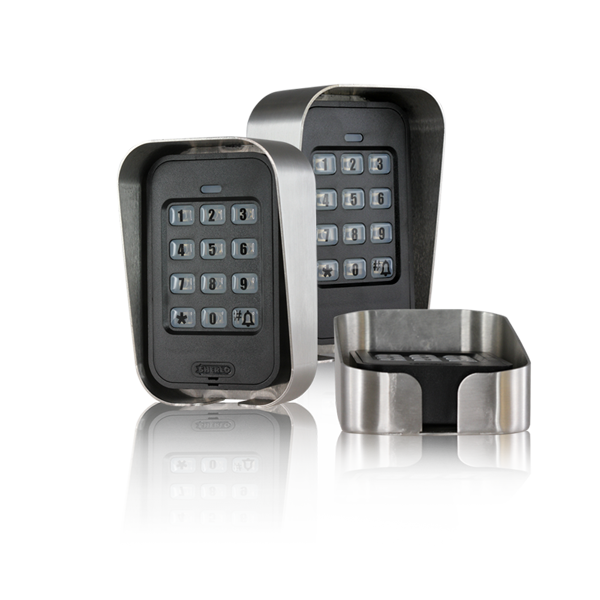

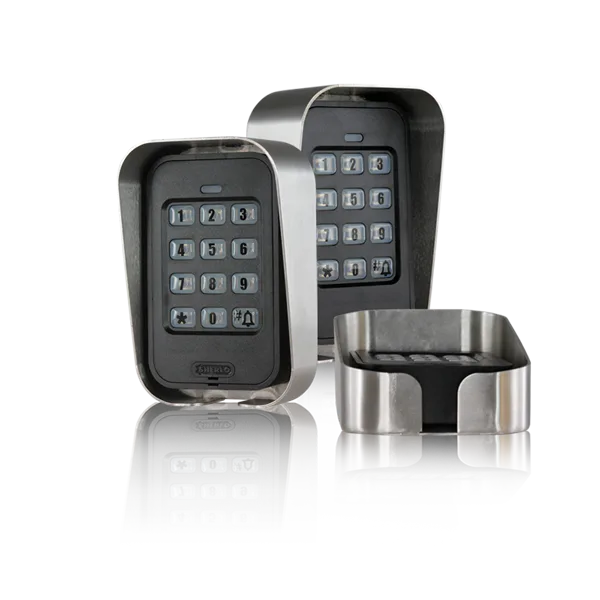

SHERLO WIRELESS ACCESS CONTROL KEYPAD UNIT

Sherlo Wireless Access Control Keypad_Installation-manual

Sherlo Access Control KEYPAD_Sales-brochure

Categories: , , Tags: ,

Description

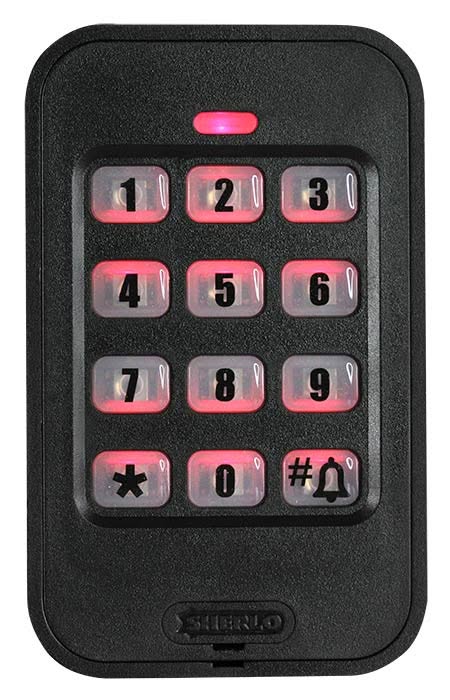

The Sherlo Wireless Keypad is designed for secure access control of buildings, properties, gate/garage entrances, internal doors, striker locks and even arming/disarming alarm panels.

The unit can be programmed with up to 9 RF Channels to control different receivers.

You can very easily program the keypad on a PC in Notepad so that you don’t have to waste time manually programming the keypad. This can then be very easily & reliably saved onto the Keypad using a microSD card.

The keypad is battery powered, but has a 12V DC wired input connector.

APPLICATIONS

  • Gate access control
  • Garage door access control
  • Striker lock access control
  • Internal door mag-lock access control
  • Arming / Disarming Alarms
  • Wireless Doorbell

FEATURES

  • Wireless Code hopping
  • 1000 unique Pin code from 1-10 digit
  • Backing up the unit with a microSD card
  • Wrong code lock out function
  • Holiday mode
  • 9 Channel RF outputs
  • 1 Door bell RF output
  • Waterproof housing available

SPECIFICATIONS

  • Battery supply voltage: 2 x AA Alkaline batteries (voltage range: 2.4V – 3.3V)
  • External power input: 10V-14V DC input
  • Wireless range: 30m indoors
  • Operating temperature: -3°C to +65°C
  • Operating humidity: 0 – 90{68739fa983faecee31915ff283ab3cd1b2db08f58bc11950f69fd88f88215fec}
  • Outputs: 9 Channels + 1 Doorbell output
  • Housing material: ABS Black
  • Rating: IP55
  • Battery life: 2-3 years dependant on Usage
  • Usage life: 60 000 activations
  • Code length: 1 – 10 digits
  • Memory capacity: 1000 unique codes
