Description

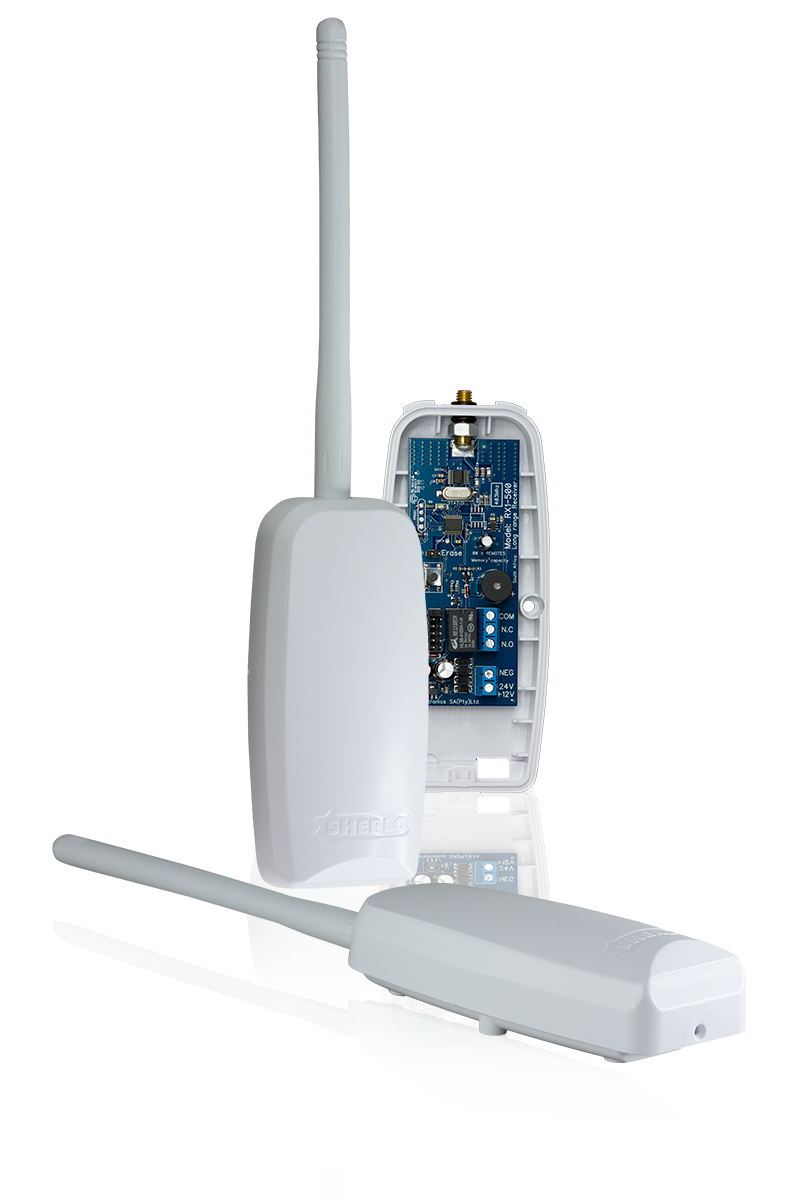

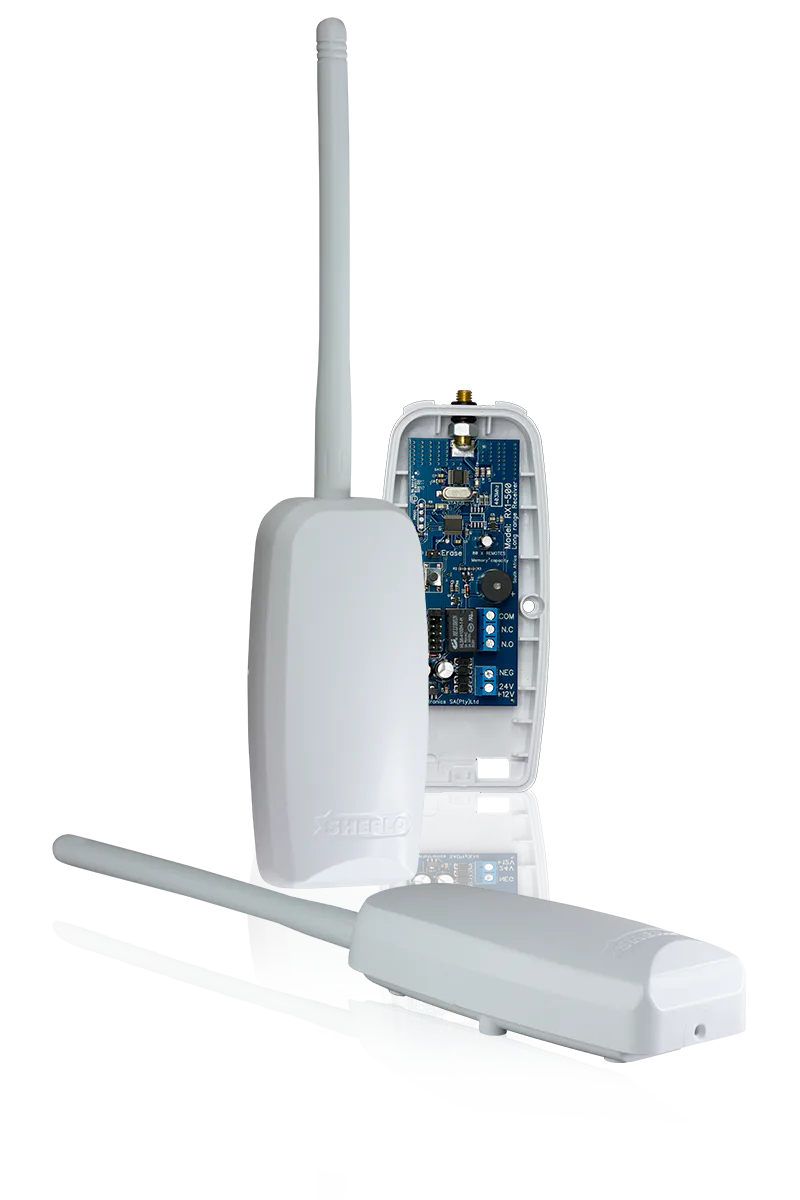

Long Range Outdoor Receiver. Class-leading, high performance long range receivers for wireless security applications.
- 1 Ch Receiver – 80 Users: RX1-500
- 4 Ch Receiver – 64 Users: Rx2-500
Applications:
- Gate & Garage Door Access Control
- Panic Activations
- Arming / Disarming Alarm systems
- Switching On / Off lights
- Switching On / Off Generators
Features:
- Code hopping Encryption
- Latch or Momentary
- Selectable Momentary times
- 1 Sec; 3Sec; 1min; 3min; ON/OFF
- Buzzer tone
- Crystal Controlled +/- 100KHz
- Frequencies: 403MHz / 433MHz
- 12 – 24V AC/DC input
- Weatherproof housing
Specifications:
- Encryption: Code-hopping
- Range: 500m (Open air)
- Frequency: 403MHz / 433MHz
- Memory Capacity:-
– RX1-500 80 Remotes
– RX4-500 64 RemotesVoltage Range: 10V to 26V AC/DC - Current draw: 20mA
- Dimensions (lxbxh): 187 x 104 x 67mm
- Gross Weight: 235 grams
- Operating Temp: -3°C to 60°C
- Warranty: 24 Months
