Description

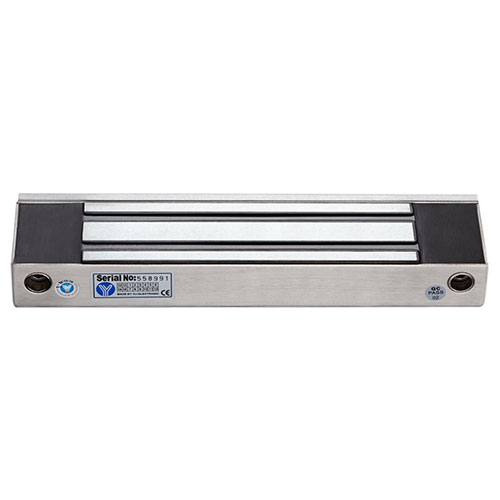

Single door electric lock with waterproof function.100{68739fa983faecee31915ff283ab3cd1b2db08f58bc11950f69fd88f88215fec} waterproof treatment. Used for metal door, heavy door and so on. It is with signal output and all the accessories are sealed inside the lock cylinder.
| Lock Size | Â 227.6Lx52.6Wx28.5H(mm) |
| Armature plate | Â 190Lx45Wx11H(mm) |
| Holding Force | Â 350kg(800Lbs) |
| Voltage | Â 12 or 24VDC |
| Current Draw: | Â 12V/480mA or 24V/240mA |
| Suitable for | Â Wooden door , Glass door ,Metal door , Fireproof door |
| Signal Output | Â Dry Contact,Max Rating of Contact Current 3A |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10～+55℃(14-131F) |
| Suitable Humidity | 0~95{68739fa983faecee31915ff283ab3cd1b2db08f58bc11950f69fd88f88215fec}(non-condensing) |
| Finishes for Shell | Â Anodized aluminum |
| Finishes for Magnetic | Â Zinc |
| Finishes for Armature | Â Zinc |
| Weight | Â 2.7kg |
| WEIGHT | 2.665 kg |
|---|---|
| DIMENSIONS | 30.5 × 7 × 6.5 cm |
