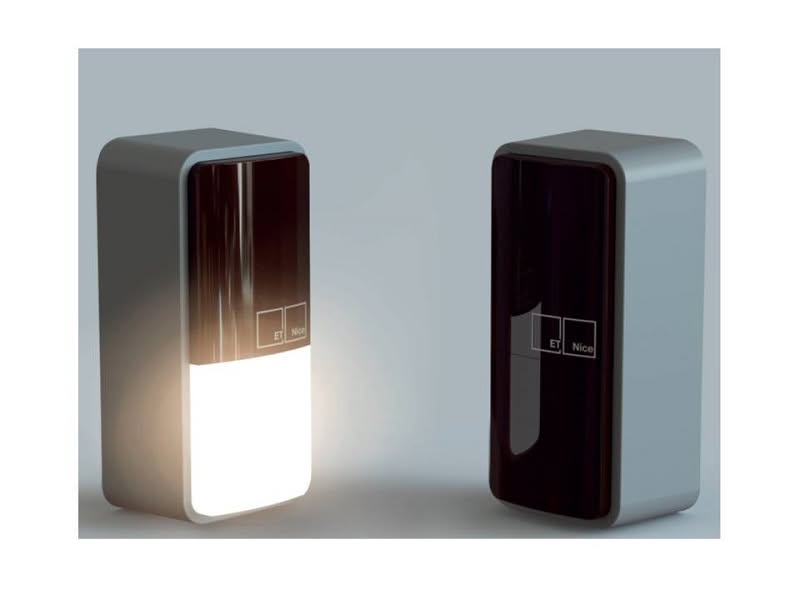

ET Wave Wireless Transmitter Safety Beams

Description

A new WAVE in infra-red safety beams.  Easy installation with wireless transmitter and mechanical tilt alignment feature. A contemporary, stylish and weatherproof design with an industry first – a built in LED courtesy light!

Easy installation:
• No requirement for parallel mounting surfaces – built-in mechanical tilt adjustment up to 32 degrees for easy alignment
• Alignment assistance via either buzzer (dip-switch selectable) and/or light module
• Wireless battery-operated transmitter, so no need for cabling across driveway
• Easy multiple beam setup – 2 independent channels to prevent cross talk, dip-switch selectable

Courtesy light module: – standard built-in LED Courtesy Light with various switching options
• Open / Close Courtesy Light
• Gate / Door Operator Status Indicator, i.e. AC Power Fail, Low Battery, Gate Jam and many more
• Conveniently connects to ET Nice Control Cards

Efficient design with long battery life:
• Easy Dip-switch selectable power mode for battery life up to 3 years
• Battery low audible indicator

Multi-use:
• Gate monitoring, Garage Door monitoring, Intruder detection, visitor notifi cation plus many more
• Compatible with ET Nice Gate Operators, Garage Door Operators and Intruder Alarm Systems
Contemporary and stylish weatherproof design

Technical Specifications:
Standard Mode – Operating Distance 6m
Standard Mode – Expected Battery Life 3 years
Boost Mode – Operating Distance 12m
Boost Mode – Expected Battery Life 1 year
Receiver Power Supply 10-30 Vac/dc
Transmitter Power Supply 1 x 3V DC CR123A Battery (Supplied)
Receiver Power Consumption 28mA (@ 12Vdc)
Selectable Transmission Channels 2
Courtesy Light Module Standard – LED
Output Contact N/C and N/O, Potential Free Contact; “dead man fallout”
Output Contact Rating 2A @ 30V DC Non Inductive
Alignment Area 1m2 @ 10m**
Parallel Mounting Surfaces not required
Mechanical Tilt Function – Adjustable up to 32 Degrees
Operating Temperature -10°C / +50°C
Ingress Protection IP 44
Dimensions 105 x 50 x 40 mm

WAVE Sharecall: 0860 109 238 • www.niceforyou.com/za
Proudly designed, manufactured and supported by:
ET Nice (Pty) Ltd, South Africa
