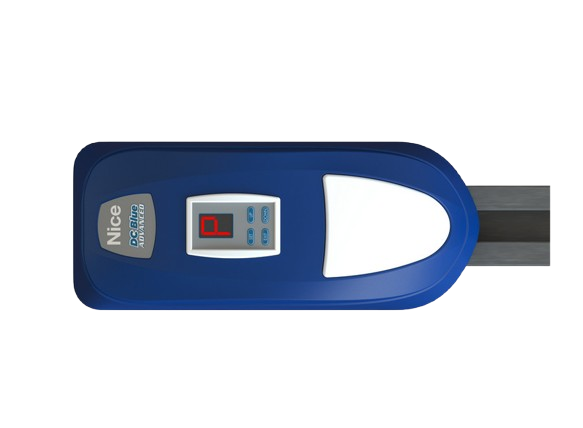

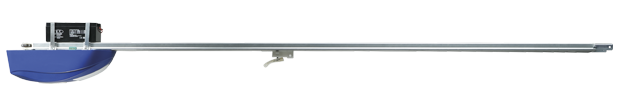

ET DC BLUE ADVANCED TIP-UP SECTIONAL GARAGE DOOR MOTOR

Description

Designed for residential sectional overhead and trackless tip-up garage doors of up to 15m2.

Powerful high torque motor.

Features:

  • Robust construction with metal chassis and gears.
  • Reliable and proven DC Blue Advanced technology.
  • Intelligent door load profiling for added safety and control.
  • Simple to program and fault find with 7 segment LED Display.
  • Sleek, modern design.
  • Safety beam input.
  • Variable automatic closing time.
  • LED courtesy light and optional external light control.
  • Built-in ET-Blu Mix enhanced rolling code receiver.

Specifications:

  • Input voltage: 230v AC, 50Hz-60Hz.
  • Motor voltage: 24V transformer. Not battery dependent.
  • Number of operations on battery reserve without AC mains present: 50 within the first 24h of power failure.
  • Maximum duty cycle: 25{68739fa983faecee31915ff283ab3cd1b2db08f58bc11950f69fd88f88215fec}
  • Maximum pulling force: 1000N.
  • Rated speed: 8m per minute.
