Description

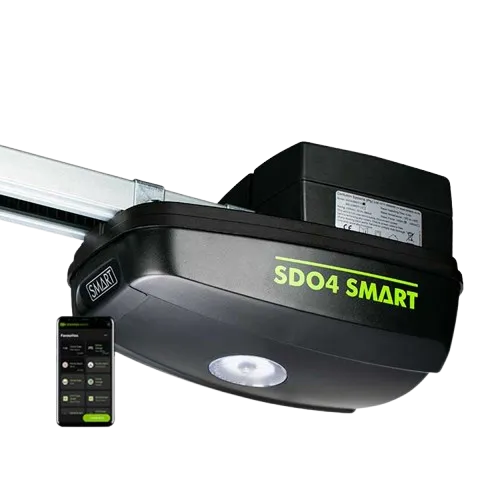

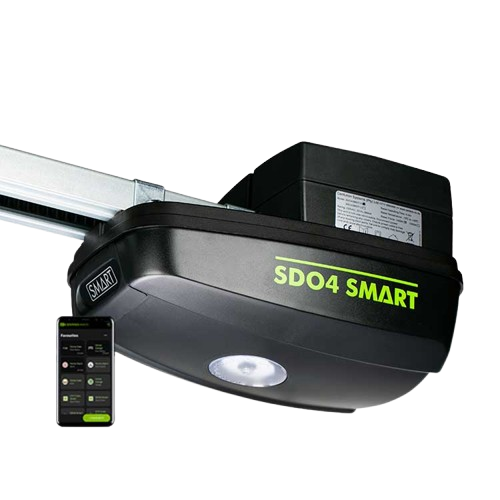

Transform your garage experience with the Centurion SDO4 SMART Tip-up and Sectional Garage Door Motor, designed for seamless installation, whisper-quiet performance, and robust security.
Watch it in action:
Features
-
Whisper-Quiet, Smooth Operation – Powered by a precision 24 V DC motor for virtually silent performance.
-
Dual Application (Tip-up & Sectional) – Auto-adapts the run profile via an intuitive LED-guided display.
-
Battery-Backup with Solar Compatibility – Equipped with dual 12 V batteries, ensuring functionality through power interruptions. Solar upgrade available.
-
Advanced Safety – Built-in anti-crushing circuitry with selectable auto-close feature (requires infrared beams) and optional Photon SMART wireless beams.
-
Smart Integration – Compatible with the MyCentsys PRO app for remote configuration, diagnostics, and system management.
-
Enhanced Security – Features include a tamper alarm, holiday lock-out mode, code-hopping remotes, and door service monitoring for proactive maintenance alerts.
-
Energy-Efficient Design – Ultra-low power consumption in Sleep Mode (0.5 W).
-
Easy Setup – Slide-in drive rail, color-coded buttons, and LED display ensure speedy installation and setup.
Technical Specifications
| Spec | T10 (Standard) | T12 (Heavy Door) |
|---|---|---|
| Input Voltage | 230 V AC @ 50/60 Hz | 230 V AC @ 50/60 Hz |
| Motor Voltage | 24 V DC | 24 V DC |
| Rated Motor Power | 80 W DC | 100 W DC |
| Battery Supply | 2× 3.4 Ah 12 V DC | 2× 3.4 Ah 12 V DC |
| Maximum Door Width | 6.5 m | 6.5 m |
| Max Door Area | 12 m² | 15 m² |
| Max Push/Pull Force | 40 kgf | 50 kgf |
| Max Lifting Capacity | 1000 N | 1200 N |
| Standby Operations | Up to ~90 (depends on door and battery) | Same |
| Max Travel Speed | ~9 m/min | ~9 m/min |
| End-stops | Physical autoset | Physical autoset |
| LED Light | 2 W LED | 2 W LED |
| Auto-Close | Menu selectable | Menu selectable |
| Infrared Beams | Optional menu-select | Optional menu-select |
| Receiver | Code-hopping, single-channel (433.92 MHz) | Same |
| Remote Storage | 20 × 4-button transmitters | Same |
| Warranty | 3 years | 3 years |
Upgrade your garage with the Centurion SDO4 SMART Garage Door Motor!
