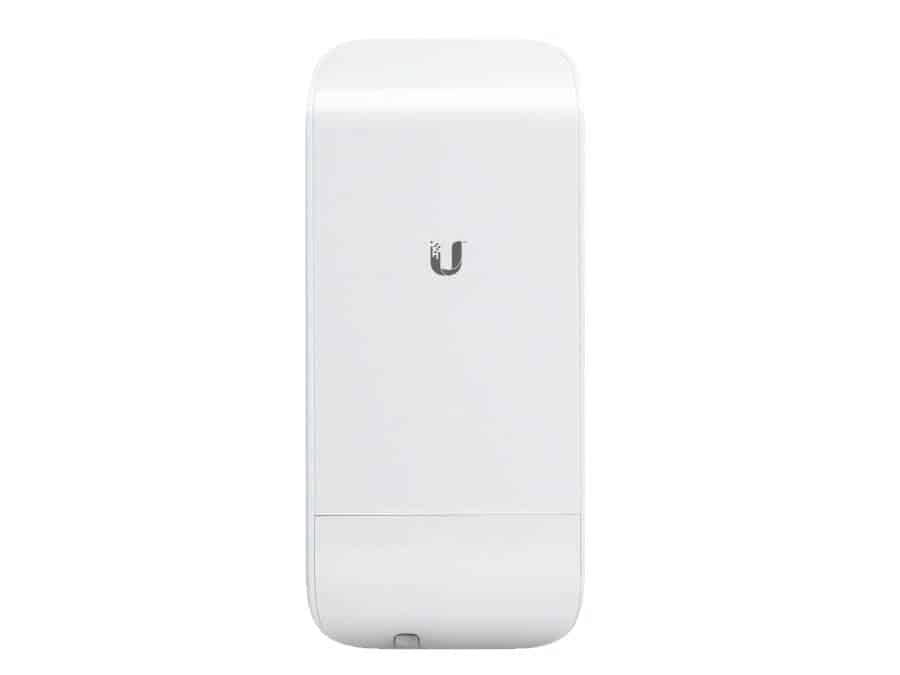

Ubiquiti 2GHz airMAX MIMO NanoStation Loco CPE


Ubiquiti 2GHz airMAX MIMO NanoStation Loco CPE, is the same concept as its predecessor but it now features redesigned sleek and elegant form-factors and an integrated airMAX (MIMO TDMA Protocol) Technology.

Unlike standard WiFi protocol, Ubiquiti’s TDMA airMAX protocol allows each client to send and receive data using pre-designed time slots scheduled by an intelligent AP controller. This ‘time slot’ method eliminates hidden node collisions and maximises air time efficiency. It provides many performance improvements in latency, throughput, and scalability compared to other outdoor systems in its class.

The low cost, hi-performance and small form factors of NanoStation Loco M make it versatile and ideal in several different applications.

Antenna Gain: 8.5dBi
Beam-width: 60°
Data Rate: 150Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 5.5W
Mounting: Pole-Mount
Operating System: airMAX
Operating Temperature: -30°C to 75°C
PoE Input: 24V Passive PoE
PoE Output: None

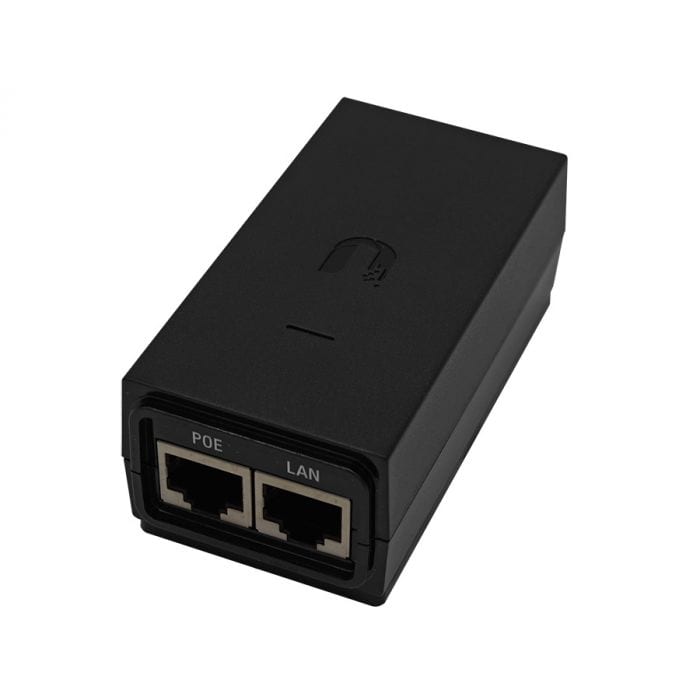

Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 161 x 31 x 80mm
Weight: 180g
