Description

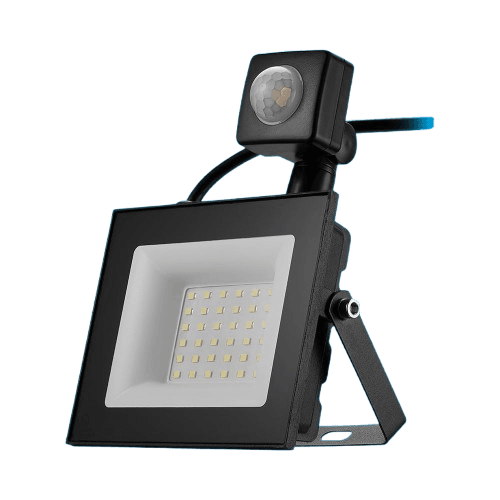

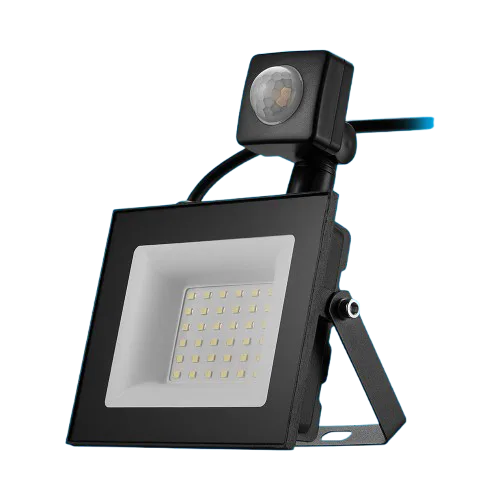

Protect expansive outdoor areas like main driveways, commercial building access points, and backyard spaces with the high-performance Switched 30W LED Flood Light with Automatic Motion Sensor (SWD-10016-30). Driving a massive 2400 lumens of brilliant cool white light, this unit covers broad perimeters, casting away deep shadows to keep your family and property safe. The integrated smart sensor responds instantly to activity, ensuring your arrival home is well-lit while acting as a proactive deterrent to intruders.
Built to thrive in demanding external environments, its industrial-grade housing carries a verified IP65 waterproof rating, keeping the internal electronics completely shielded from wind, dust, and driving rain. The built-in PIR control unit is highly customisable. Dial in your detection distance up to 8 metres, alter the shutoff delay from 5 seconds to 15 minutes, and choose whether the light activates exclusively at night or functions all day long. Experience powerful, high-output perimeter security with a fraction of the power consumption required by traditional floodlights.
Features of the Switched 30W LED Flood Light with Automatic Motion Sensor
-
- High-Intensity Perimeter Lighting: Pours out 2400 lumens of intense cool white light across broad perimeters and commercial spaces.
- Advanced SMD Core: Packaged with 36 high-efficiency 2835 SMD LEDs for long-lasting performance and lower heat dissipation.
- IP65 Weather Resistance: Rugged, tightly sealed exterior housing safeguards components against harsh outdoor storms and dust.
- Tailored Sensor Settings: Proactively configure detection zones from 1m to 8m, and set custom automatic delays up to 900 seconds.
- Day & Night Intelligence: Easily configure night-only sensor profiles or enable daytime operational triggers via intuitive mode selectors.
Technical Specifications
- Brand / Manufacturer: Switched
- Product Code: SWD-10016-30
- Power Consumption: 30 Watts
- Luminous Flux: 2400 Lumens
- LED Configuration: 36x 2835 SMD LEDs
- Operating Voltage: 220-240V AC
- Detection Distance: Adjustable 1 Metre to 8 Metres
- Detection Angle: 120 Degrees
- Adjustable Delay: 5 Seconds to 900 Seconds
- Weather Protection: IP65 Waterproof
Frequently Asked Questions (FAQs)
Q1: How do I change the detection distance on the motion sensor?
The PIR sensor on both the 10W and 30W models features a sensitivity adjustment dial. You can turn this dial to increase or decrease the range. The 30W model allows you to customize the distance anywhere from 1 metre up to a maximum of 8 metres.
Q2: Can I set the light to stay on all night without using the sensor?
No, these specific models are designed as dedicated automatic motion-sensor lights to maximize energy savings. They trigger automatically when movement is detected. They do not feature a manual override switch for permanent continuous lighting.
Q3: What is the difference between Mode 1 and Mode 2?
-
- Mode 1 (Night-Only): The floodlight activates its motion sensor only after dark. This saves electricity during daylight hours.
- Mode 2 (24-Hour): The sensor triggers the light anytime motion is detected, regardless of whether it is day or night. This is ideal for dark alleys or shaded under-balcony areas.
Q4: Can these floodlights survive heavy rain and storms?
Yes, absolutely. Both models carry an IP65 weatherproof rating. This means they are completely dust-tight and fully sealed against heavy rain, waterspouts, and severe outdoor weather conditions.
Q5: Do these lights come with a pre-installed wall plug?
These security lights are supplied with a fly-lead cable for safety and permanent placement. They are designed to be securely hardwired into your property’s mains electrical system.
Step-by-Step Installation Guide for the Switched 30W LED Flood Light with Automatic Motion Sensor
Before starting, always turn off the main power at your distribution board to avoid electrical shock.
- Choose the Location: Select a mounting position 1.8 to 2.5 metres above the ground for optimal 120-degree sensor coverage.
- Mount the Bracket: Remove the detachable mounting bracket from the floodlight. Use it as a template to mark and drill holes on your wall, then secure the bracket using the provided wall plugs and screws.
- Connect the Wiring: Pass your mains cable through to the light. Connect the wires to the floodlight fly-lead using a waterproof junction box:
-
- Brown Wire: Live (L)
- Blue Wire: Neutral (N)
- Green/Yellow Wire: Earth (E)
-
- Attach the Housing: Fix the floodlight body back onto the mounted wall bracket and tighten the side adjustment bolts.
- Adjust Sensor Settings: Set your preferred time delay (5s to 900s), choose your operational mode (day/night), and point the PIR sensor toward your primary target zone.
- Power On and Test: Switch the main electrical power back on and walk across the detection zone to test the trigger sensitivity.
