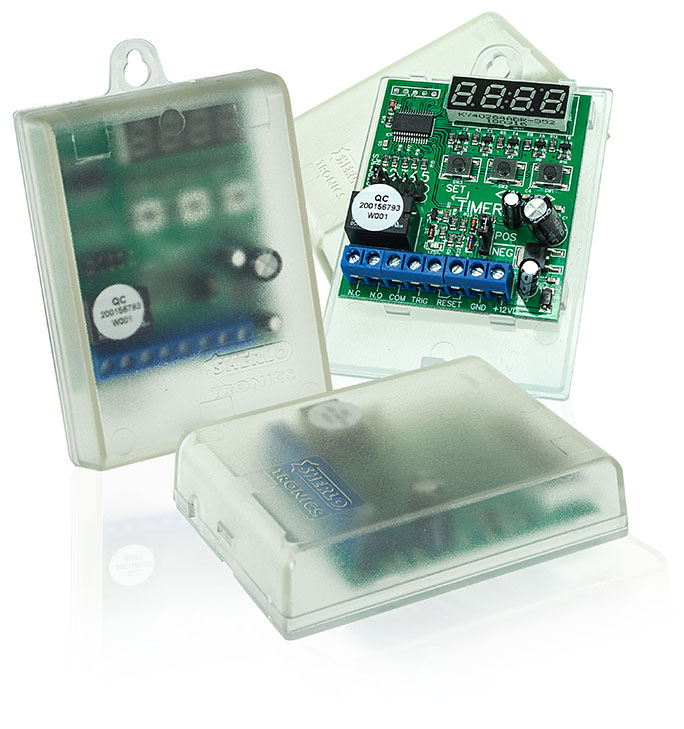

SHERLO TIMER MODULE

Sherlo Timer Installation Manual

Sherlo Timer Installation Manual

Description

The Sherlo Timer Module:

  • Can be programmed with 10 different functions.
  • Module can be used for customising siren output times, beam bypass, guard awake and auto gate & garage door closure applications.
  • A variety of applications and functions are visualised for this product and with a bit of imagination the unit will solve various security installation issues.

FEATURES

  • Timed Relay output from 1 second to 59 minutes & 59 seconds
  • Timed Relay output from 1 Minute to 23 hours
  • Auto garage door closure
  • Guard awake timer
  • Pulse stretcher
  • Counter
  • Count down trigger output
  • False alarm prevention
  • Momentary to Latching

SPECIFICATIONS

  • Power input range: 10V ~ 14V DC
  • Functions: 1 second to 59 minute timer output
  • 1 minute to 24 hours timer output
  • Auto door closure
  • Guard awake timer
  • Pulse stretcher
  • Counter
  • Count down trigger output
  • False alarm prevention
  • Momentary to latching
  • 1 second to 59 minute timer re-triggable
  • Trigger Input: Positive / Negative
  • Reset Input: Normally Open potentially free
  • Relay output Load @ 12V DC: 1AMP
  • Dimensions: 52 X 65mm (PCB)
