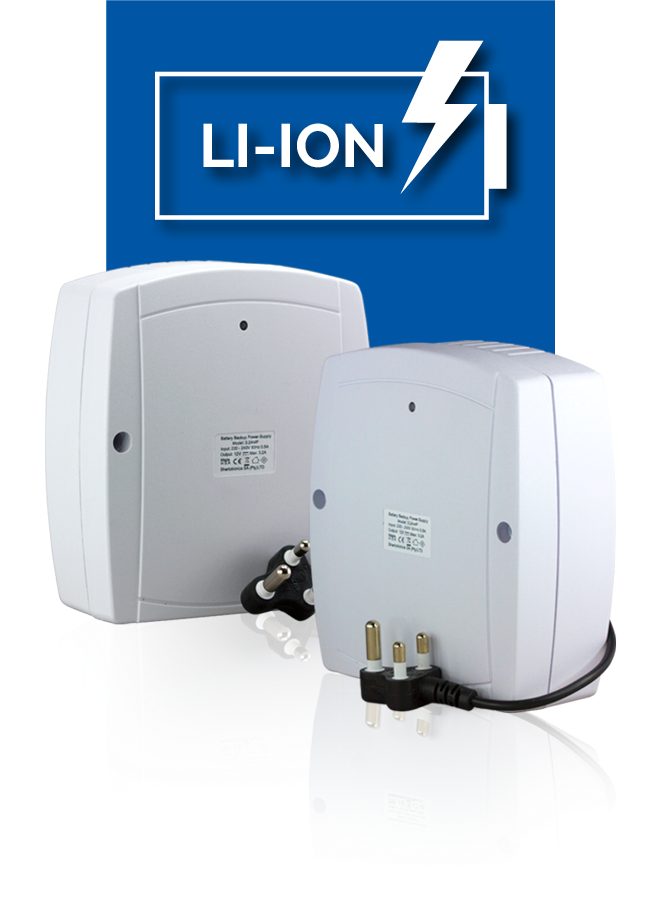

SHERLO 3A LITHIUM BATTERY BACKUP POWER-SUPPLY

Description

SHERLO 3A LITHIUM BATTERY BACKUP POWER-SUPPLY is Designed with rugged intelligent charging, and with low battery protection.

APPLICATIONS

  • Charging of 7AMP Lithium batteries
  • Alarm panel Battery backup
  • CCTV Battery backup
  • Backup power supply for door controller.
  • Magnetic lock for an Access Control solution

FEATURES

  • Microprocessor Controlled charging output.
  • Current limited 2AMP
  • Low battery switch off at 10V DC.
  • Over voltage protection >15V
  • Resettable Fuse protection on output.
  • Fuse protection on AC input.
  • ABS Plastic enclosure.

CERTIFICATIONS

  • EN 55022:2010;   EN 55024:2010
  • EN 6100-3-2:2006+A1:2009 + A2:2009
  • EN 6100-3-3:2008;   IEC 60950-1:2005 + A1:2009

SPECIFICATIONS

  • Input Voltage Range: 110V ~ 230V AC 50Hz
  • Output Voltage: 13V ~ 14.4V Adjustable
  • Max Current output: 3A DC / 35Watts
  • Relay contact rating: 10A
  • AC Fail output rating: 140mA Positive switching
  • Operating temp: -3°C to 60°C
  • Dimensions (lxbxh): 200 x 180 x 87mm
  • Gross Weight: 0.895Kg
  • Warranty: 12 Months.
