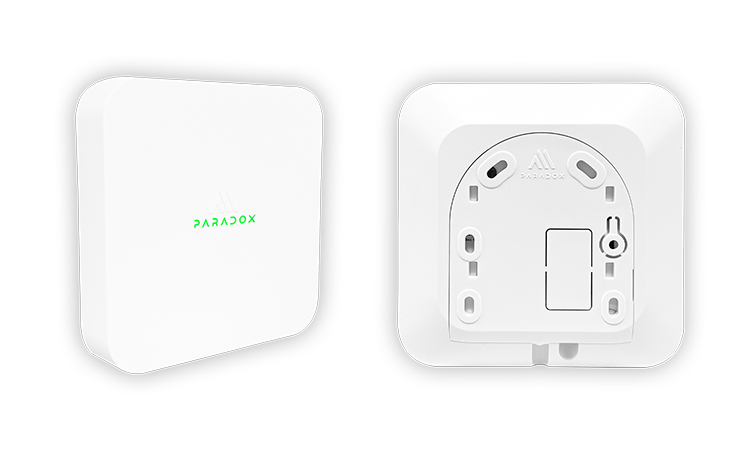

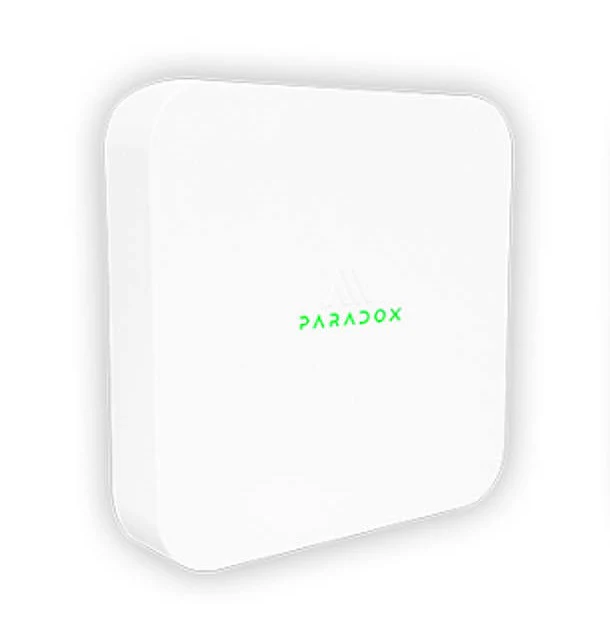

Paradox M25 Hybrid System Head Unit / Console– Integrated Security, Video, Control, and Access
CODE: PA6819 M25 CONSOLE WIFI 868MHZ
The Paradox M25 Hybrid System Head Unit / Console PA6819 is a powerful and ultra-compact security solution designed for today’s smart homes, businesses, and multi-unit properties. As part of the renowned Paradox M-Series, the M25 is a hybrid head unit that seamlessly combines wireless and wired capabilities with robust Ethernet, Wi-Fi, and LTE connectivity options.
Designed for intuitive use and advanced protection, the M25 offers integrated security, video verification, access control, and environmental monitoring, making it one of the most versatile systems on the market. Whether you’re installing it in a large apartment or a mid-sized commercial property, its sleek design and direct-connect capabilities ensure performance without relying on the cloud.
Key Features
-
Hybrid Security Solution: Supports wireless, wired, and Ethernet devices. Expandable to suit growing security needs.
-
Advanced Communications: Three communication channels — Ethernet (PoE), Wi-Fi, and LTE — for enhanced redundancy.
-
Direct Reporting: Supports up to four IP receivers (IPC10), enabling cloud-free, reliable supervision.
-
Secure & Encrypted: Utilizes GFSK wireless technology with frequency and encryption hopping for top-tier data protection.
-
Effortless Installation: Single RJ45 PoE cable for power and data. Auto-learn feature for devices via QR code or manual entry.
-
Mobile Control with BlueEye App: Real-time notifications, remote arm/disarm, temperature alerts, and more.
-
User Management: Up to 128 users with assignable roles and images; 10 partitions and support for 128 remotes.
-
Programmable Outputs: Up to 48 PGMs for automation and alerts — schedule-based, event-based, or temperature-triggered.
-
Future-Proof: Ready for video verification and access control integration (releasing in 2025).
Technical Specifications
| Feature | Specification |
|---|---|
| Power Supply | PoE, 10W Max |
| Battery Backup | 26H on Ethernet, 24H on Wi-Fi, 20H on LTE |
| Users | 128 total (Owner, Master, User, Guest, Maintenance) |
| Zones | 100 |
| Wireless Devices | 75 per system |
| Partitions | 10 |
| Remotes | Up to 128 |
| PGMs | Up to 48 (manual, schedule, event, temp-based activation) |
| Video Support | Up to 16 cameras (from May 2025) |
| Access Control | Up to 16 doors (from July 2025) |
| Connectivity | Ethernet, Wi-Fi (2.4GHz), LTE |
| Cloud Services | Paradox Swan 4G (Subscription-based) |
| Certifications | CE, EN 50131-1/3/6/10, EN 50136-1/2, Grade 2, Class II |
| Operating Temp | -25°C to +55°C |
| Dimensions | 12.4 x 12.4 x 3.55 cm |
What’s Included in the box
-
Paradox M25 Head Unit
-
Built-in Wi-Fi and LTE (optional)
-
RJ45 PoE input
-
Internal Lithium Battery (5000mAh)
-
Access to BlueEye App and Paradox Dealer Portal
Take total control of your security: Whether you’re at home or away, the Paradox M25 Hybrid System Head Unit / Console PA6819 keeps you connected, informed, and in control — all in one beautifully compact device.
Complete the System with High Precision Perimeter Protection
Expand your security perimeter with these compatible, robust outdoor motion detectors engineered to withstand harsh environments.
Paradox PMD85M Outdoor PIR / Pet Immunity PA6730
For professional-grade outdoor motion detection, trust the Paradox PMD85M Outdoor PIR / Pet Immunity PA6730—designed for real-world conditions and peace of mind.
Paradox PMD780M Outdoor Dual-Side View PIR PA6736
Secure your outdoors like never before with the Paradox PMD780M PA6736, combining wide-angle detection, pet immunity, and wireless technology for trusted perimeter protection.
