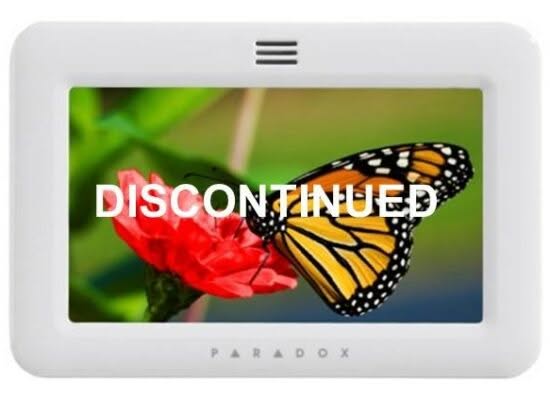

PA3861 Paradox TM50 Touch Interface Keypad


The TM50 is a touch screen input keypad designed to communicate with Paradox control panels, and offer user friendly interface.

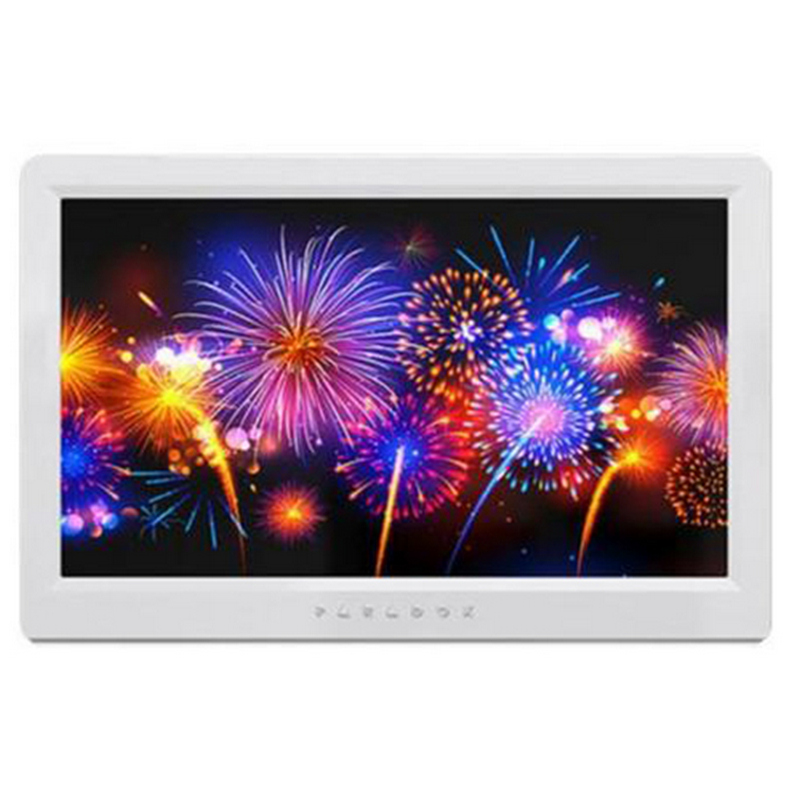

It is offered in black and white while other colours can be ordered.  There are two sizes to select, 7inch – TM70 or 5inch – TM50.

It comes with an external SD media card (4GB), 2GB free space for uploading jpegs for screen savers.

5Inch vivid color display
Compatible with Swan, EVO and Spectra
Built – in zone input
Customizable labels (zones, partitions, users, and PGMs)
External SD Media Card slot (4GB with 2GB of free space) for uploading photos; acts like a digital picure frame
Firmware upgradable via SD card or Bus with Swan system
Indoor temperature reading

Please note:

Power requirements for this keypads is at 250mA, please calculate your power consumption as an additional system power supply might be required.
EVO192, MG5050 & SP6000 are compatible. (Minimum version for each panel below).
EVO192 Version 2.50 and above
MG5050 Version 4.74 and above
SP6000 Version 4.94 and above
SP65 Version 4.96 and above
