Olarm MAX Dual SIM 4G & Wi-Fi

Description

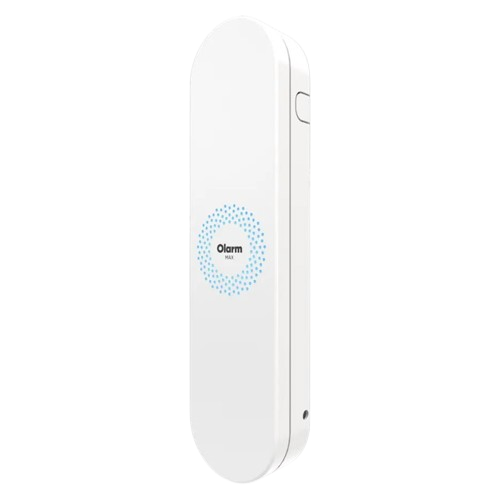

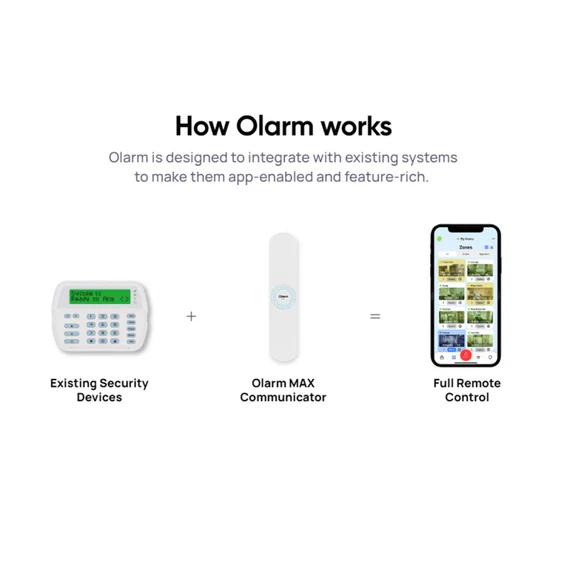

Upgrade your existing alarm and security system with the Olarm MAX Dual SIM 4G & Wi-Fi Communicator (Model PA8515-MAXA).  It is a compact yet powerful smart communicator that delivers seamless remote control, instant alerts, and superior network redundancy. Designed for modern smart security needs. Olarm MAX ensures your system stays connected, even during power interruptions.

View here:  Official Olarm MAX page

Features

• Multi-path connectivity: Combines Wi-Fi and dual-SIM (4G/2G) with simultaneous multi-path routing for unmatched reliability

• Fast installation & OTA updates: Plug-and-play setup with over-the-air firmware updates keeps your system secure and current

• Tamper-resistant design: Optical tamper detection, tamper-proof antennas, and rugged ABS enclosure keep the device protected

• Powerline resilience: Stays online for up to 4 minutes during power loss and immediately notifies you

• Remote camera integration: Works with RTSP-enabled cameras for visual verification of alarm events — no port forwarding needed

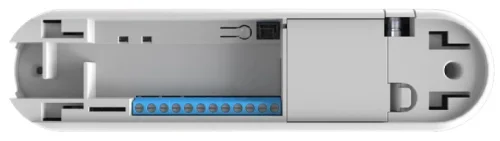

• Configurable I/O control: Two configurable ports to trigger or control lights, gates, or panic devices from the app

Specifications

• Connectivity: Dual-SIM 4G (LTE Cat 1) & 2G + 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)

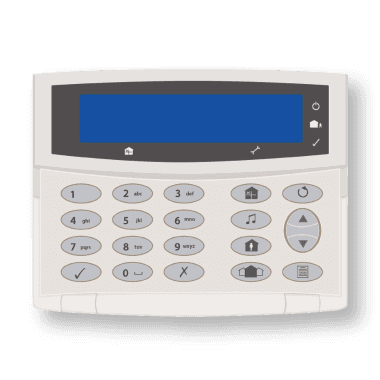

• Supported Alarm Panels & Devices: Paradox, Texecom, IDS, DSC, Orisec, Honeywell (some require adapter boards)

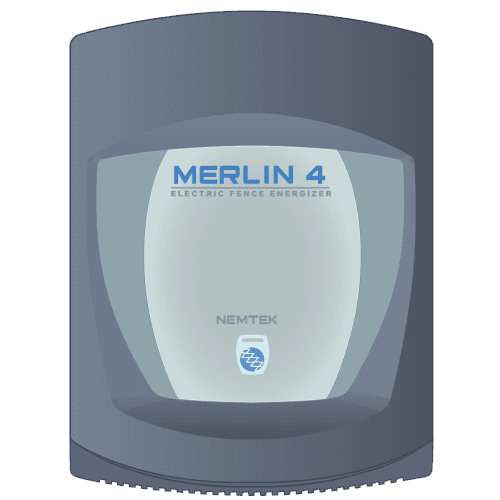

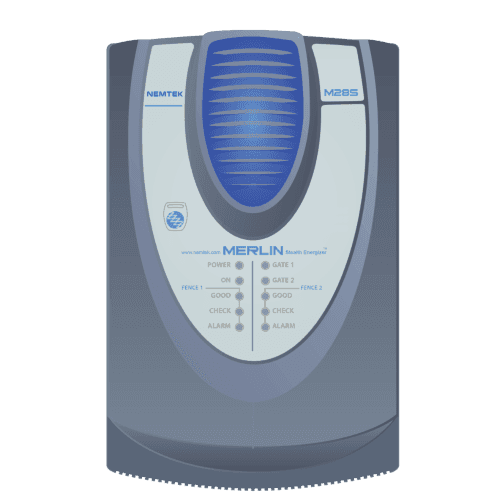

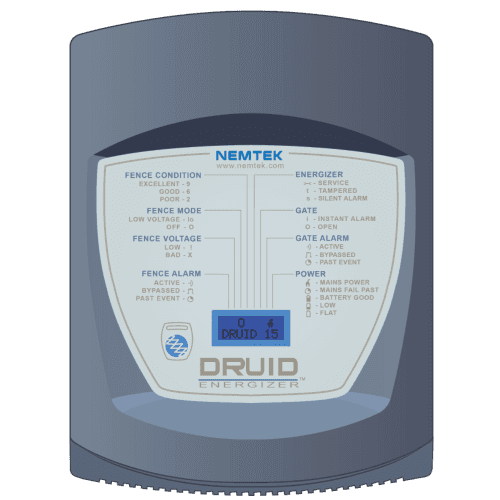

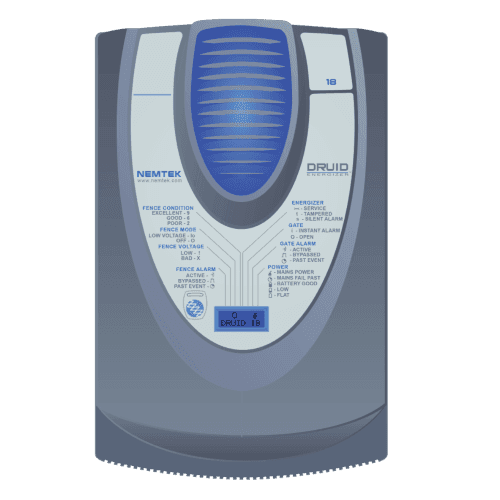

• Nemtek electric fences: Compatible with Druid and Merlin models — control voltage, receive tamper alerts, and view status remotely

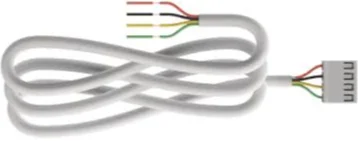

• Peripheral Protocols: Serial & Keybus; standard cable length 1.5 m (max 3 m)

• Mechanical: Device 200 × 50 × 20 mm; weight 111 g; enclosure ABS resin; RGB status LED

• Power: 7–24 VDC, draws 100 mA (typical), 250 mA max @12 VDC; requires ≥300 mA supply

• Battery: 3.7 V super-capacitor backup (model dependent)

• Operating Conditions: −15 °C to 60 °C, 0–90% RH

• Mobile Bands (MAX A): LTE-FDD B1/3/5/7/8/20/28; GSM B3/8

• SIM Management: Preloaded, Olarm-managed SIMs — no user setup required



Alarm systems

Electric Fence

Legacy Devices: Alarm panels, Garage Door, Electric Fences, Door and Gates.

Installation Guides:

Here’s the official Olarm installation guide resource for the Olarm MAX communicator:

Access step-by-step installation guides tailored to your specific equipment, from alarm panels to electric fences directly on Olarm’s website: Olarm MAX | Install Guides Click here:  Olarm.

Comprehensive installation instructions for popular systems including:

• Alarm Panels (e.g., Paradox, Texecom, DSC, IDS, Orisec, Honeywell)

• Electric Fence Energizers (Nemtek and others) Help CentreOlarm

To get started:

Navigate to the main Olarm MAX Installation Guides page.

Select your equipment type (e.g., alarm panel or fence).

Choose your brand and model to access the relevant step-by-step guide.
