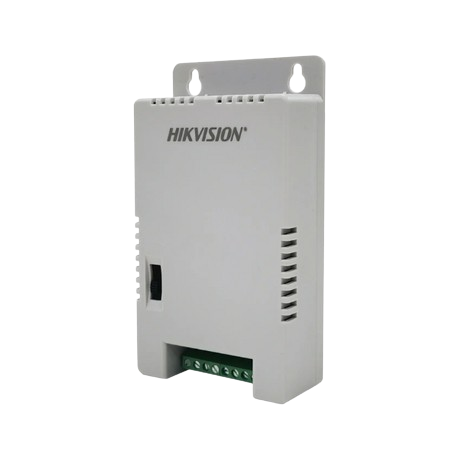

Hikvision DS-2FA1225-C4 Multi-channel SMPS

Description

Power up your surveillance system with reliability and efficiency.

The Hikvision DS-2FA1225-C4 Multi-channel SMPS is a high-performance 4-channel switch mode power supply (SMPS) designed specifically for CCTV systems. Built for safety and durability, this multi-channel SMPS ensures a stable 12V DC power output for up to four cameras simultaneously, making it an ideal solution for small to medium-sized surveillance setups.

With short-circuit and overload protection, this robust power adaptor guarantees the safe operation of connected devices. It also offers precise voltage regulation, ensuring that your CCTV equipment functions optimally at all times.

Whether you’re installing a new system or upgrading an existing one, the DS-2FA1225-C4 simplifies your setup and reduces cable clutter by centralizing power distribution. Its compact and reliable design makes it suitable for residential, commercial, and industrial applications.

Features:

• 4 independent 12V DC outputs (up to 1.5A per channel)

• Total maximum power output: 60W

• Built-in short-circuit and overload protection

• Universal AC input voltage: 100–240V

• Compact and space-saving design

• Fanless cooling for quiet operation

• Plug-and-play installation

Specifications:

• Model: DS-2FA1225-C4

• Input Voltage: 100–240V AC, 50/60 Hz

• Output Voltage: 12V DC ± 5%

• Output Current: 1.5A per channel (4 channels)

• Max Output Power: 60W

• Protection: Short-circuit and overload

• Operating Temperature: -10°C to +55°C

• Dimensions: 165 × 60 × 33 mm

• Mounting: Wall or surface mount

Downloads:

• Product Page on Hikvision

• Datasheet (PDF)

This power adaptor is a practical, efficient, and cost-effective solution for powering up to four surveillance cameras. Its rugged build and safety-focused design ensure long-lasting performance and peace of mind.
