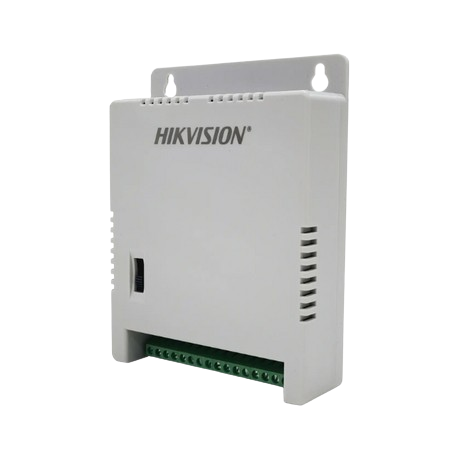

Hikvision DS-2FA1205-C8 Multi-Channel SMPS

Description

Hikvision DS-2FA1205-C8 Multi-Channel SMPS (8-Channel 12V Power Supply)

Overview

The Hikvision DS-2FA1205-C8 Multi-Channel SMPS is a compact and robust 8-channel switching mode power supply (SMPS) designed specifically for CCTV applications. With a maximum total output of 60W and voltage options of 12V, 13.5V, and 15V DC, this unit is optimized for delivering consistent and efficient power to multiple surveillance cameras simultaneously.

Ideal for installations requiring multiple low-voltage outputs, this Hikvision SMPS ensures your cameras maintain reliable operation, even in varying electrical conditions.

Key Features

• 8-Channel Output: Each channel provides 12V DC at 1A, suitable for powering up to eight devices.

• Adjustable Output Voltage: Offers switchable output voltages (12V / 13.5V / 15V) to counteract cable voltage drops.

• Wide Input Range: Operates with 150–285V AC input for use in diverse power environments.

• Protection Circuitry: Built-in overcurrent, short circuit, and overvoltage protections safeguard connected devices.

• Status Indicator: Green LED provides visual confirmation of operational status.

• Low Ripple & Noise: Designed for clean, stable power delivery with ripple and noise ≤150 mVp-p.

• Reliable EMC Performance: Ensures low electromagnetic interference in sensitive environments.

Specifications

• Model: DS-2FA1205-C8(EUR)

• Power Output: Max. 60W total (12V × 5A)

• Operating Temperature: 0°C to 40°C

• Humidity: 10%–95% (non-condensing)

• Storage Temperature: -40°C to 80°C

• Dimensions: 144 × 109.5 × 33 mm

• Connectors: AC – C8 / DC – Grid terminal DC plug

Ideal For:

• Multi-camera CCTV setups

• Retail and commercial installations

• Residential security systems

• Long-distance camera cabling (voltage compensation)
