Description

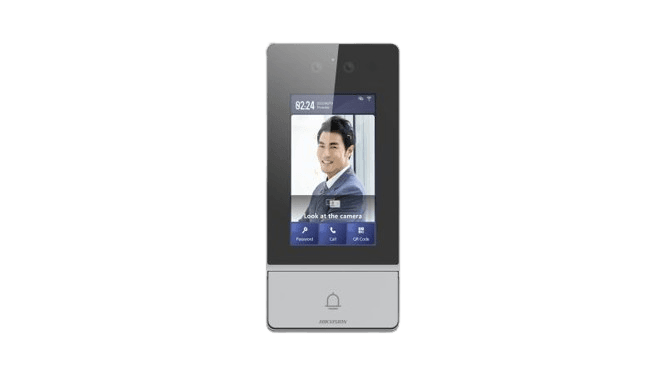

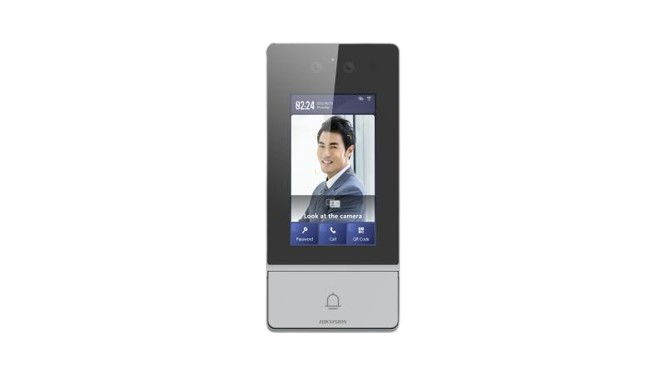

Upgrade to secure and smart visitor access with the Hikvision DS‑KV9503‑WBE1 IP Intercom Metal Villa Door Station
Key Features
-
Facial Recognition & Multi-Auth: Secure access via face recognition, MIFARE card, QR code, PIN.
-
Metal Vandal-Resistant Housing: IP65 & IK08 rated durable aluminum design for harsh outdoor environments.
-
4.3″ IPS Touchscreen: Interactive touch interface with a bright, user-friendly display.
-
Dual 2 MP Wide-Angle Cameras: Capture crisp, color images with IR night vision up to 3 m.
-
PoE Powered: Single-cable PoE connection simplifies installation and reduces wiring.
-
Flexible Integration: Seamlessly connects with Hik-Connect, iVMS-4200, SIP, RTSP.
-
Two-Way Audio & Remote Access: Built-in mic/speaker with echo cancellation for clear communication and remote visitor access.
-
Weather-Resistant: IP65 dust & water resistance and IK08 vandal-resistant design for tough outdoor use.
Specifications
| Specification | Details |
|---|---|
| Display | 4.3″ IPS capacitive touch (800 × 480) |
| Camera | 2 MP dual-lens, IR illumination up to 3 m |
| Auth. Methods | Face, QR code, MIFARE card, PIN |
| User Capacity | 10,000 faces, 100,000 cards, 20,000 QR codes |
| Connectivity | Ethernet 10/100 Mbps, PoE IEEE 802.3af, optional Wi‑Fi |
| Power Supply | PoE or 12 VDC/1.5 A |
| Relay Outputs | 2 × relay for doors/gates |
| Ingress Protection | IP65 & IK08 impact resistance |
| Operating Range | –40 °C to +60 °C; 10–90% RH |
| Dimensions (H×W×D) | 182 × 85 × 26 mm; 0.405 kg |
Why Choose the Hikvision DS‑KV9503‑WBE1?
The Hikvision DS‑KV9503‑WBE1 IP Intercom Metal Villa Door Station provides a complete access solution for modern, high-security premises. Its rugged design, facial recognition engine, interactive touch display, and integrated PoE simplify setup and enhance security. Ideal for residential villas, commercial offices, and secured apartment blocks, this station offers premium audio-visual communication, intuitive control, and reliable weather-proofing for long-term use.
Product Page: DS‑KV9503‑WBE1 IP Intercom Door Station on Hikvision.com
