Description

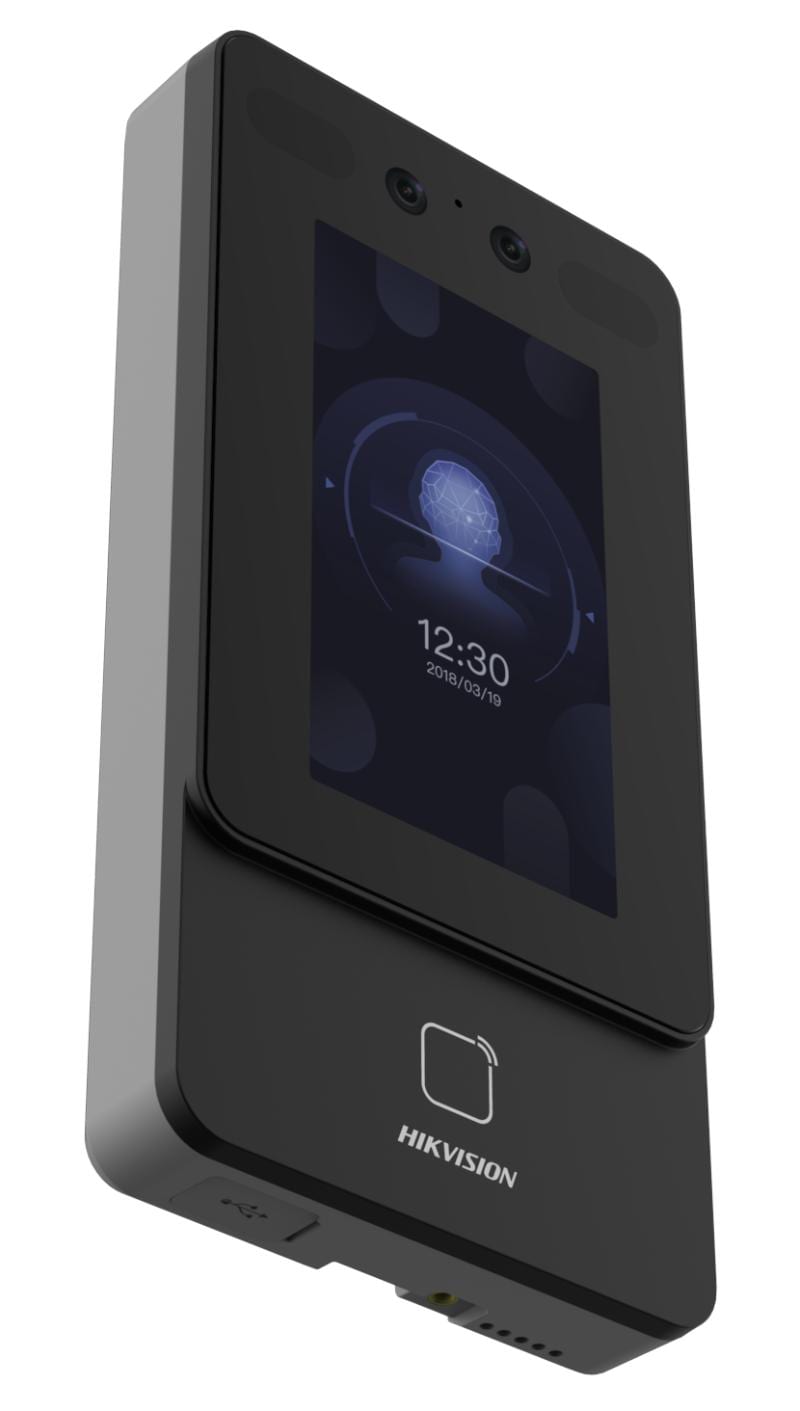

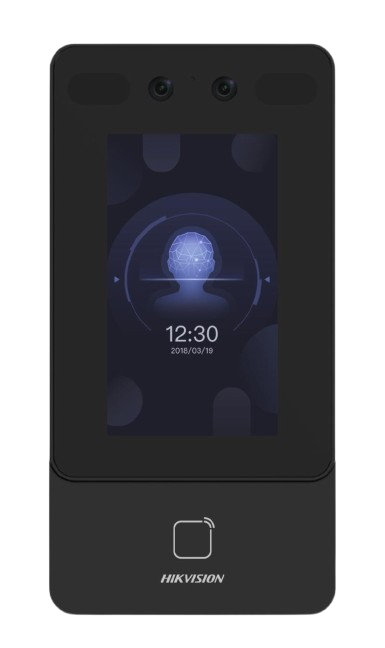

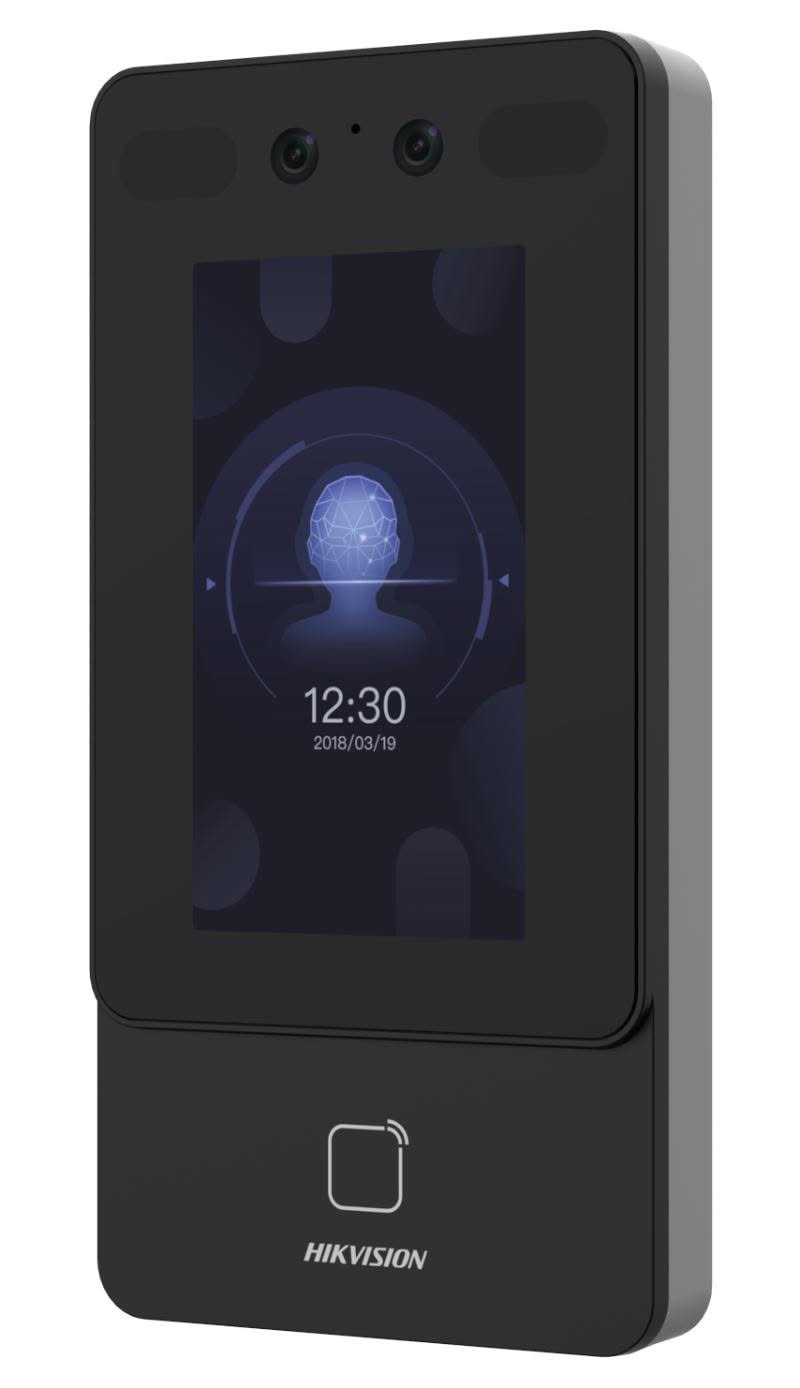

The Hikvision DS‑K1T342MWX‑E1 Face Recognition Terminal merges fast, accurate facial recognition—even while wearing masks—with multi-factor authentication in a tough, outdoor-capable housing.
Features
-
Rapid Face Recognition – < 0.2 s per user, captures from 0.3 m to 1.5 m with ≥ 99% accuracy, including mask detection.
-
Multi-Factor Access – Supports 1,500 face templates; 3,000 M1 cards; platform/device-set PINs.
-
Interactive Touchscreen – 4.3″ capacitive LCD (272 × 480 px) provides intuitive on-device navigation.
-
Dual 2 MP Camera & Audio – Enables two-way communication via client software or master stations.
-
Outdoor-Rated Design – Durable IP65 rating and wall-mountable housing.
-
Seamless Connectivity – PoE (IEEE 802.3at), Ethernet, Wi‑Fi, RS‑485, Wiegand, USB interfaces; provides 12 V/1 A lock output.
-
Remote Configuration – Web-based UI with ISAPI & ISUP5.0 support simplify integration.
-
High Performance Logging – Stores up to 150,000 event records with face anti-spoofing and time-sync features.
Specifications
| Specification | Details |
|---|---|
| OS | Linux-based |
| Display | 4.3″ capacitive LCD (272 × 480) |
| Camera | 2 × 2 MP wide-angle |
| Recognition Speed | < 0.2 s / user |
| Accuracy | ≥ 99% |
| Recognition Range | 0.3–1.5 m |
| Capacity | Faces 1,500; Cards 3,000; Events 150,000 |
| Card Type | M1 (13.56 MHz) |
| Network | Ethernet 10/100 Mbps, Wi‑Fi |
| Interfaces | PoE, RS‑485, Wiegand, USB, Exit button, Door contact, Tamper |
| PoE Power | IEEE 802.3at (37–57 V); 12 V/1 A lock output |
| Power Adapter | 12 VDC/1 A (included) |
| Operating Temp/Humidity | –30 °C to +60 °C; 0–90% RH (non-condensing) |
| Dimensions | 91.3 × 181.3 × 24.5 mm |
| Weight | 0.36 kg (net); 0.93 kg (gross) |
| Protection Level | IP65 (dust & water resistant) |
| Mounting | Wall mount |
| Languages Supported | English, Arabic, Spanish, Thai, Indonesian, Russian, Vietnamese, Portuguese (BR), Korean |
| Functions | Face anti-spoofing, audio prompts, time sync |
Why It Stands Out
The Hikvision DS‑K1T342MWX‑E1 Face Recognition Terminal perfect for schools, offices, gated communities, and commercial venues seeking streamlined, secure access control. Deploying it is simple: PoE support, web-based configuration, and a clean touchscreen interface all contribute to a smooth installation and management experience.
Product Page: DS‑K1T342MWX‑E1 on Hikvision.com
