Description

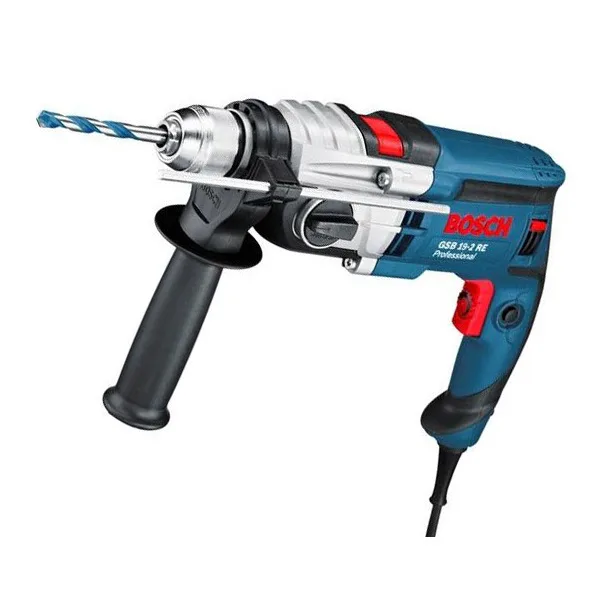

The fastest and most versatile tool in its class
- 1Powerful 2-speed impact drill (850 W) for the fastest work progress
- 2Sturdy metal gear housing for a long lifetime
- 3Antirotation mechanical overload clutch for a high level of work safety
Specification overview
| Rated input power | 850 W |
| No-load speed | 0 – 1000 / 3000 rpm |
| Power output | 430 W |
| Weight | 2.6 kg |
| Rated speed | 800 / 2060 rpm |
| Rated torque | 5,2 / 2,0 Nm |
| Drill spindle connecting thread | 1/2″ – 20 UNF |
| Chuck capacity, min./max. | 1,5 – 13 mm |
| Impact rate at no-load speed | 0 – 17000 / 51000 bpm |
| Max. torque | 36,0 / 15,5 Nm |
| Drilling range | |
|---|---|
| Drilling diameter in concrete | 18 / 13 mm |
| Drilling diameter in wood | 40 / 25 mm |
| Drilling diameter in steel | 13 / 8 mm |
| Drilling dia. in stone | 20 / 15 mm |
| Drilling diameter in masonry | 20 / 15 mm |
| Drilling in metal | |
|---|---|
| Vibration emission value ah | 3 m/s² |
| Uncertainty K | 1.5 m/s² |
| Impact drilling in concrete | |
|---|---|
| Vibration emission value ah | 15 m/s² |
| Uncertainty K | 2 m/s² |
| Screwdriving | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
| Thread cutting | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
 |
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque |
 |
Forward / reverse rotation for inserting and removing screws |
 |
Best work results with speed pre-selection for applications requiring material-specific speed |
 |
Convenient change of accessories Keyless chuck opens and closes easily |
 |
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox |
 |
Comfortable handling of the tool thanks to softgrip |
 |
Woodworking The professional power tools for woodworking from Bosch. |
