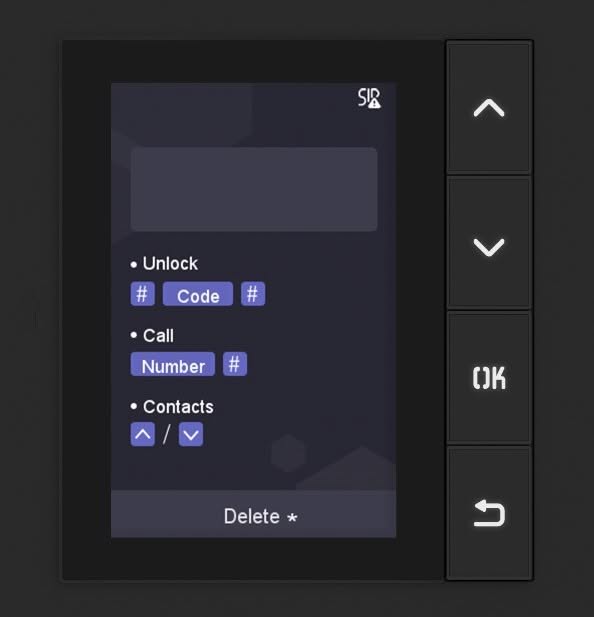

Hikvision DS-KD-DIS KD8 Series Pro Modular Door Station

Description

Upgrade your access control system with the Hikvision DS-KD-DIS KD8 Series Pro Modular Door Station – a powerful, flexible, and intelligent intercom solution designed for modern residential, commercial, and industrial environments.

This modular display unit is part of the KD8 Series Pro range and integrates seamlessly with other Hikvision door station modules, offering a fully customizable experience tailored to your needs.

Key Features:

• Modular System: Combine with camera, keypad, and card reader modules to build your ideal intercom.

• 3.5″ LCD Display: Interactive screen for viewing contact lists and receiving calls.

• User-Friendly Interface: Touch navigation makes operation intuitive and efficient.

• Customizable Contact List: Supports up to 500 indoor stations and 2,000 contacts.

• Flexible Mounting: Easily fits into flush or surface mounting brackets.

• Durable Build: Suitable for outdoor use with robust construction and IP65 protection.

• PoE Support: Simplifies installation with Power over Ethernet.

Specifications:

• Display Size: 3.5-inch TFT LCD

• Resolution: 320 × 480

• Audio: Built-in omnidirectional microphone and loudspeaker

• Power Supply: 12 VDC or standard PoE (IEEE 802.3af)

• Working Temperature: -40°C to +60°C

• Protection: IP65, IK07 (when installed with compatible brackets)

• Dimensions: 98.5 mm × 100 mm × 33.7 mm

Whether you’re looking to enhance property security or streamline building access, the Hikvision DS-KD-DIS KD8 Series Pro Modular Door Station provides the flexibility and reliability that only Hikvision can offer.
