Description

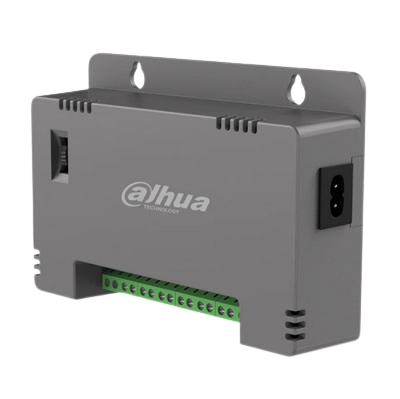

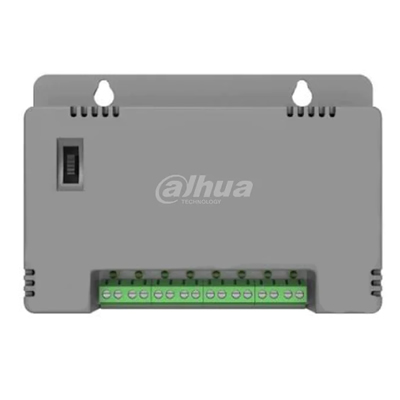

The Dahua Switching Power Supply PFM344D-8CH-EN is a reliable and efficient power solution designed to provide stable 12 V DC output across 8 independent channels. This compact, wall-mountable unit is ideal for powering CCTV cameras, access control panels, and other security devices that require a consistent power source.
Built with advanced protections and durable housing, the Dahua Switching Power Supply ensures uninterrupted operation for professional security installations.
Key Features & Benefits
-
8-Channel Output – Powers up to 8 devices simultaneously.
-
Selectable Output Modes – 12 V (Normal), 13.5 V (Long), 15 V (Extra-Long).
-
Comprehensive Protections – Overcurrent, overvoltage, short-circuit, surge & static protection.
-
High Efficiency – Level VI rating (≥ 88 %) with ≤ 0.21 W idle consumption.
-
LED Indicators – Monitor the status of each channel at a glance.
-
Durable Housing – V-0 flame-retardant compact metal casing.
-
Easy Installation – Wall-mount design for secure setup.
-
Certified – CE-approved, compliant with international EMC standards.
Specifications
-
Model: Dahua Switching Power Supply PFM344D-8CH-EN
-
Input Voltage: 100–240 VAC, 50/60 Hz
-
Output Voltage: 12 V / 13.5 V / 15 V
-
Output Current: 5 A (Normal), 4.5 A (Long), 4 A (Extra-Long)
-
Channel Power: 12 W per channel (60 W total)
-
Efficiency: ≥ 88 % (Level VI)
-
Idle Consumption: ≤ 0.21 W
-
Protections: Overcurrent, overvoltage, short-circuit, surge, static
-
Dimensions: 140.1 × 94.5 × 34.2 mm
-
Operating Temp: 0 °C ~ +40 °C
-
Certification: CE
Why Choose the Dahua Switching Power Supply?
For CCTV and access control systems, a reliable power source is essential. The Dahua Switching Power Supply offers stable, protected, and efficient power delivery, reducing downtime and ensuring long-term system performance. Its multiple safety protections, selectable output modes, and compact design make it the perfect choice for residential, commercial, and industrial applications.
