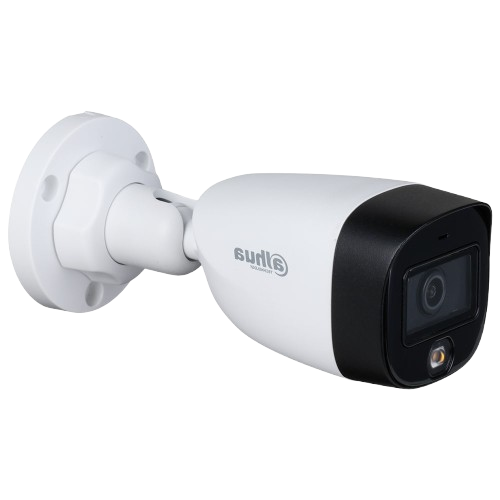

Dahua Full-Color HAC-HFW1209CP-LED-0360B Bullet Camera

Description

The Dahua Full-Color HAC-HFW1209CP-LED-0360B Bullet Camera designed to deliver high-definition color video in various lighting conditions, including complete darkness. Equipped with a 3.6mm fixed lens and advanced imaging technology, this camera is ideal for applications requiring detailed color surveillance around the clock.

Key Features:

• Full-Color Starlight Technology: Utilizes an F1.6 large aperture lens and a high-performance 1/2.8″ CMOS sensor to capture vibrant color images even in low-light environments.

• Warm Supplemental LED: Incorporates a powerful warm white LED illuminator with an effective range of up to 20 meters (65.61 feet), automatically activating in darkness to ensure clear, full-color images.

• Multiple Video Formats: Supports HDCVI, CVBS, AHD, and TVI formats, allowing for seamless integration with various DVR systems.

• Robust Design: Rated IP67 for water and dust resistance, making it suitable for both indoor and outdoor installations. The camera operates effectively in temperatures ranging from -40°C to +60°C (-40°F to +140°F).

Specifications:

• Image Sensor: 1/2.8 inch CMOS

• Effective Pixels: 1920 (H) × 1080 (V), 2MP

• Minimum Illumination: 0.01 Lux/F1.6; 0 Lux with white light on

• Illumination Distance: Up to 20 meters (65.61 feet)

• Lens: 3.6mm fixed focal length

• Field of View: Diagonal: 103.6°, Horizontal: 86.9°, Vertical: 46.3°

• Video Frame Rate: 1080p at 25/30 fps

• Power Supply: 12V DC ±30%

• Power Consumption: Maximum 3.6W

• Dimensions: 164.7 mm × 70 mm × 71.6 mm (6.48″ × 2.76″ × 2.82″)

• Weight: Approximately 0.35 kg (0.77 lb)

The Dahua Full-Color HAC-HFW1209CP-LED-0360B Bullet Camera is fixed with a 3.6mm lens, providing a short-range field of view. It is not varifocal, meaning the focal length is not adjustable. This camera is well-suited for environments such as schools, retail centers, and parking lots, where detailed color imaging is essential for effective surveillance.

This camera’s advanced features and durable design make it a reliable choice for continuous, high-quality color surveillance in various settings.

Click here for more info: Download DH-HAC-HFW1209C-LED Datasheet (PDF)
