Description

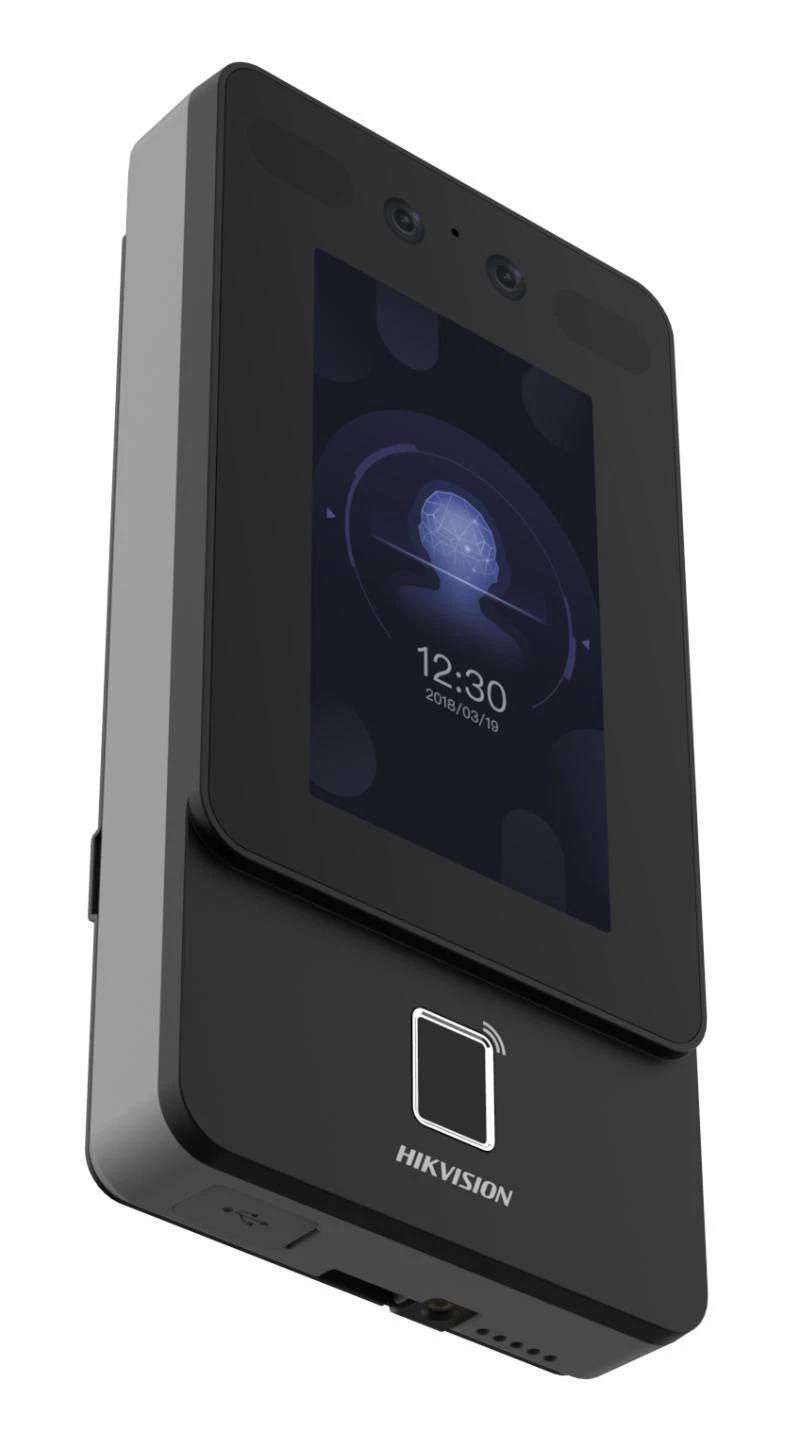

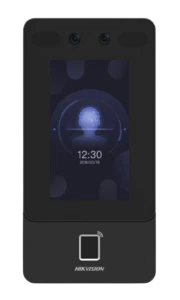

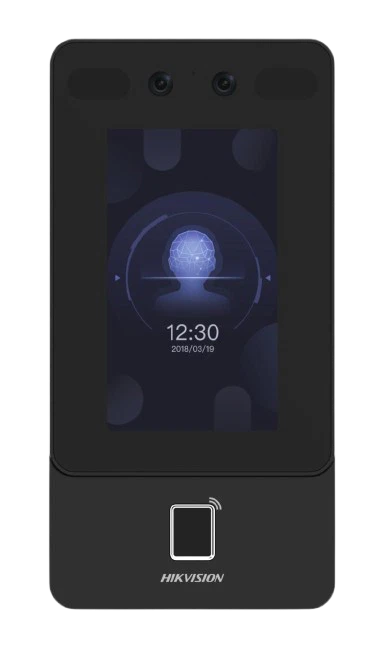

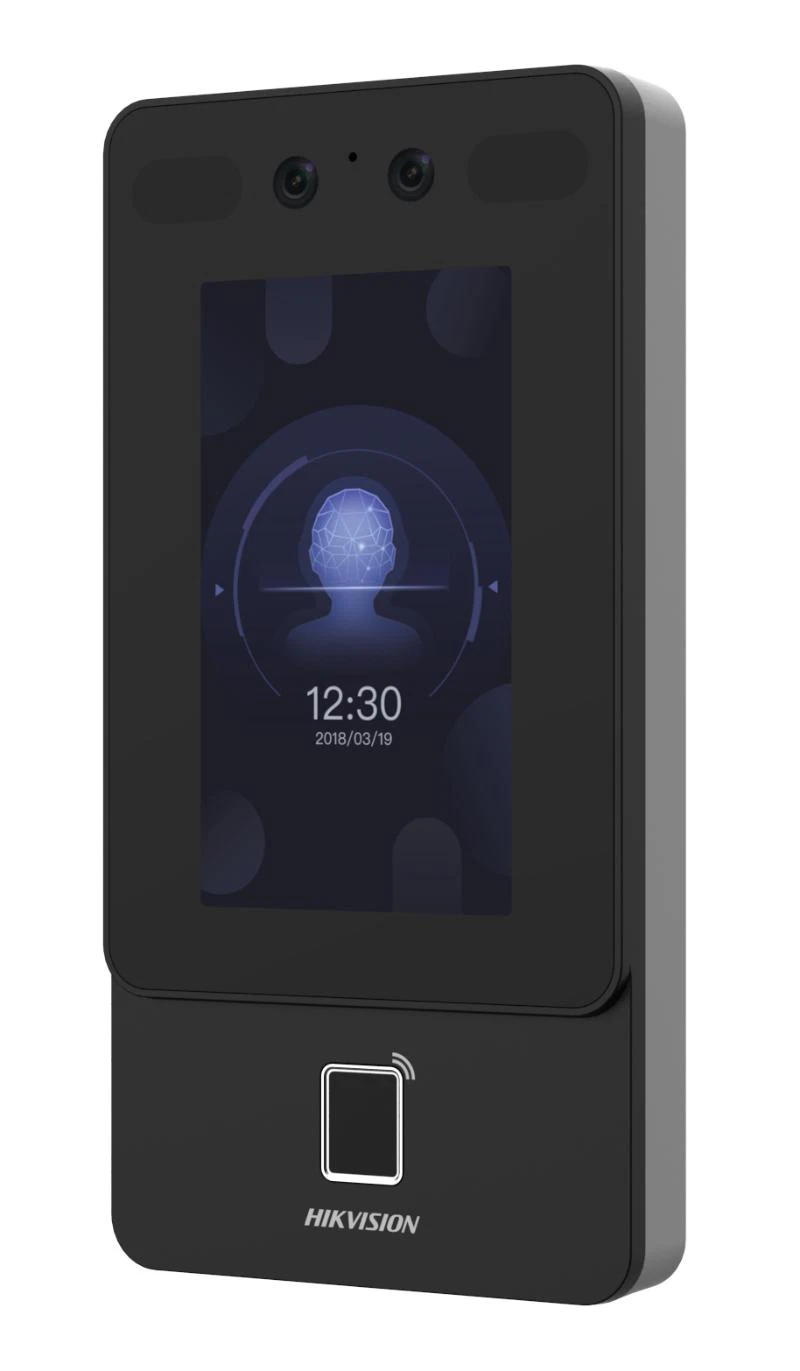

Upgrade your property’s access control with robust security, sleek performance, and deploy-ready convenience with the Hikvision DS‑K1T342MFWX‑E1 Face Recognition Terminal.
Key Features
-
Fast & Accurate Face Recognition: Powered by Hikvision’s deep learning algorithm; recognizes faces in under 0.2 s at 0.3–1.5 m distance with ≥ 99% accuracy—even with masks.
-
Flexible Multi-Factor Authentication: Supports face, fingerprint, M1 card (13.56 MHz), and PIN. Stores up to 1,500 faces, 3,000 fingerprints, and 3,000 cards.
-
Interactive Touch Display: 4.3″ capacitive LCD offers clear interface and easy onsite management.
-
Video & Audio Support: Dual 2 MP wide-angle cameras with two-way audio via client software or indoor/master stations.
-
Sturdy Outdoor Construction: Rugged IP65-rated housing ensures weather resistance—ideal for entrances, building lobbies, residential estates, campuses, and more.
-
Smart Connectivity: Offers Ethernet (10/100 Mbps), PoE (IEEE 802.3at with 12 V/1 A lock output), Wi‑Fi, RS‑485, Wiegand, door release, exit button, door contact, tamper alert, and USB interface.
-
Web Client Configurable: Manage settings remotely via web browser and integrate with third-party platforms using ISAPI or ISUP5.0 protocols.
-
Secure & Scalable: Up to 150,000 event logs; supports time sync, anti-spoofing, audio prompts; PoE powers both device and door lock.
Technical Specifications
| Specification | Details |
|---|---|
| OS | Linux-based |
| Display | 4.3″ capacitive LCD (272×480) |
| Cameras | 2 × 2 MP wide-angle |
| Recognition Speed | < 0.2 s per user (face/fingerprint) |
| Recognition Range | 0.3 – 1.5 m |
| Authentication Modes | Face, fingerprint, M1 card, PIN |
| Storage Capacity | Faces: 1,500; Fingerprints: 3,000; Cards: 3,000; Logs: 150,000 |
| Network Interfaces | Ethernet, Wi‑Fi, RS‑485, Wiegand |
| Power Supply | PoE (37–57 VDC) or 12 VDC adapter; 12 V/1 A lock output |
| Environment | –30 °C to +60 °C; 0–90% RH (non-condensing) |
| Physical Dimensions | 91.3 × 181.3 × 24.5 mm; Net weight: 0.36 kg |
| Protection Level | IP65 (outdoor rated) |
| Languages | English, Arabic, Spanish (LatAm), Thai, Russian, Korean, Vietnamese, Portuguese (BR), Indonesian |
| Key Functions | Mask detection, face anti-spoofing, time sync, audio prompts, tamper alarm |
Why Choose This Terminal?
The Hikvision DS‑K1T342MFWX‑E1 Face Recognition Terminal combines rapid facial recognition with multi-factor authentication in a tough, outdoor-ready housing. Ideal for secure access situations like corporate sites, residential buildings, educational campuses, and financial institutions, it ensures quick, safe user verification—even with face masks on. The touchscreen interface and strong connectivity options (PoE, Wi‑Fi, RS‑485, Wiegand) simplify deployment and integration. Plus, its remote config via web client and support for ISAPI/ISUP make system updates and management effortless.
DOWNLOADS:
-
Quick Start / Installation Guide (PDF): Download Quick Start Guide accesskits.co.uk+4assets.hikvision.com+4hikvision.com+4
